Operating Frequency Range |
40.0 – 50.0 GHz |
|
Power Output @ Psat |
4 W Min |
CW or Pulse |
Power Gain |
36 dB Min |
0dBm or less for rated Pout |
Power Gain Flatness |
6.0 dB p-p Typ |
Constant input power |
Operating Voltage |
100 – 240 VAC Nom |
50/60 Hz |
Power Consumption |
600 Watt Max |
|
RF Connectors In / Out / Sample Port |
2.4 mm/WR22 (2.4mm Opt. Sample) |

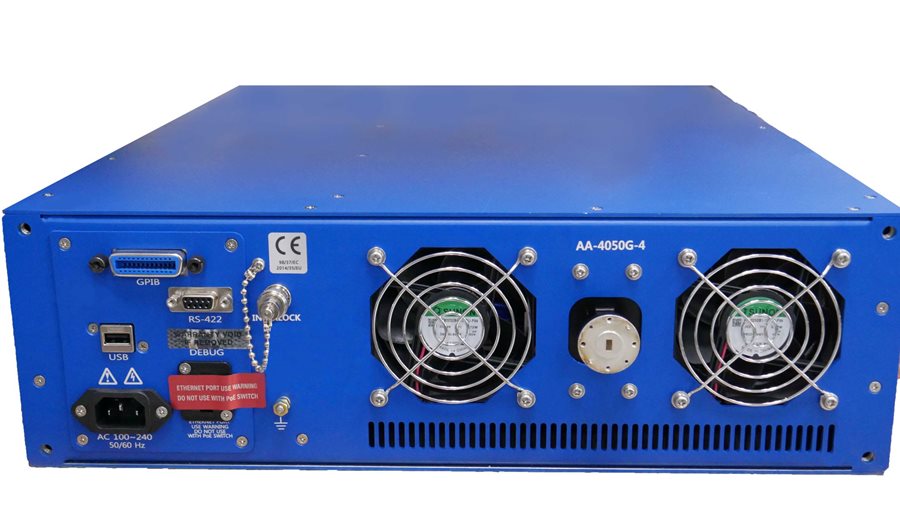

RF Output (Rear panel is Standard) |
AC Power / Interface Connector |
IEC 60320-C14 / 9-Pin D-Sub |
Or equivalent |
Dimensions (W x H x D) |
19 in x 5.25 in x 22 in |
3U |
Weight |
44.1 lbs |
|
