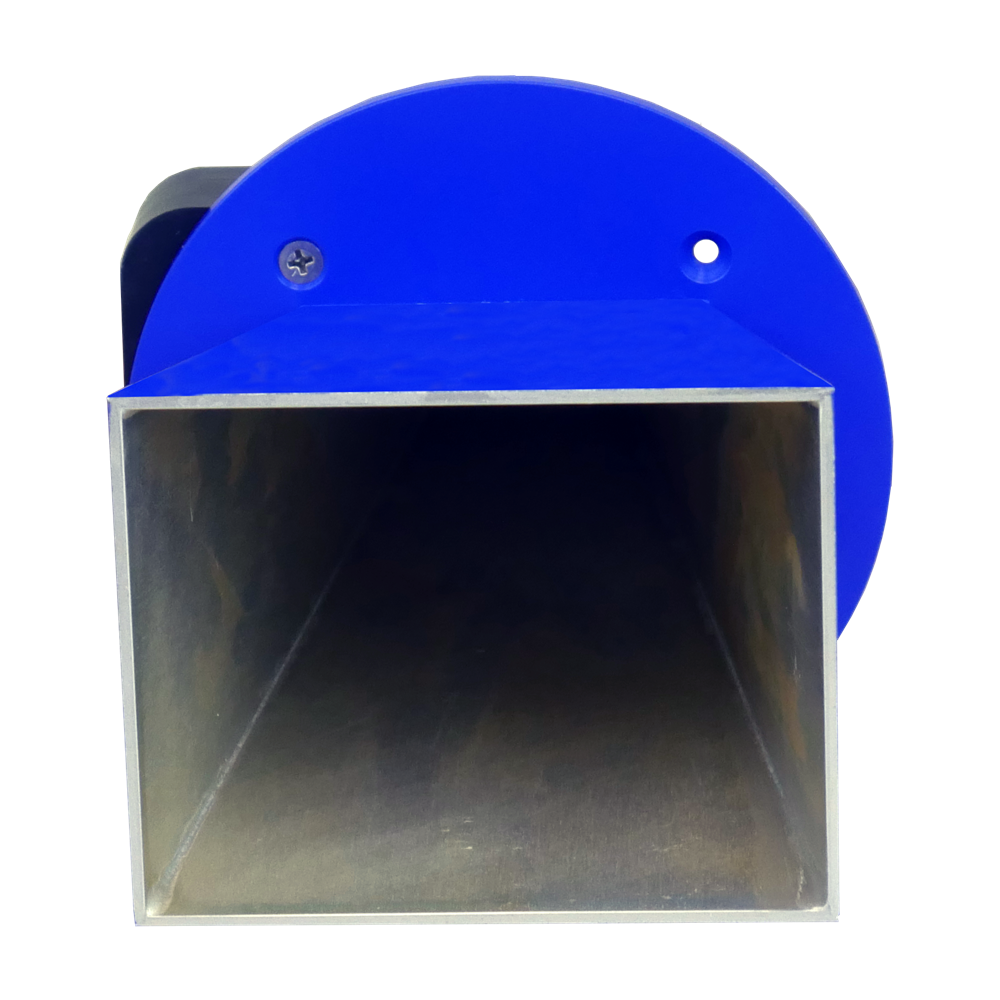

The Advanced Antennas MWH-1826G Horn Antenna is a linearly-polarized standard waveguide band microwave horn antenna designed to transmit or receive in the frequency band from 18 GHz to 26.5 GHz. Advanced Antennas MWH-1826G units provide excellent Voltage Standing Wave Ratio (VSWR), optimum antenna factor, and a high gain. MWH-1826G Horn Antennas feature uniform E-plane and H-plane radiation patterns, as well as medium transmit power capabilities.
Features
- Frequency range up to 26.5 GHz
- Excellent Voltage Standing Wave Ratio (VSWR)
- Uniform E-plane and H-plane radiation patterns
Specifications
Frequency Range |
18 GHz - 26.5 GHz |
Polarization |
Linear |
Impedance |
50 Ω |
VSWR |
1.5 : 1 Typical |
Gain |
23.5 dBi to 25.1 dBi Typical |
Antenna Factor |
31.8 dB/m to 33.4 dB/m Typical |
3 dB Beamwidth |
12° to 8° Nominal |
Waveguide Size |
WR-42 |
Power Handling |
10 W CW |
Connector |
Type K Female |
