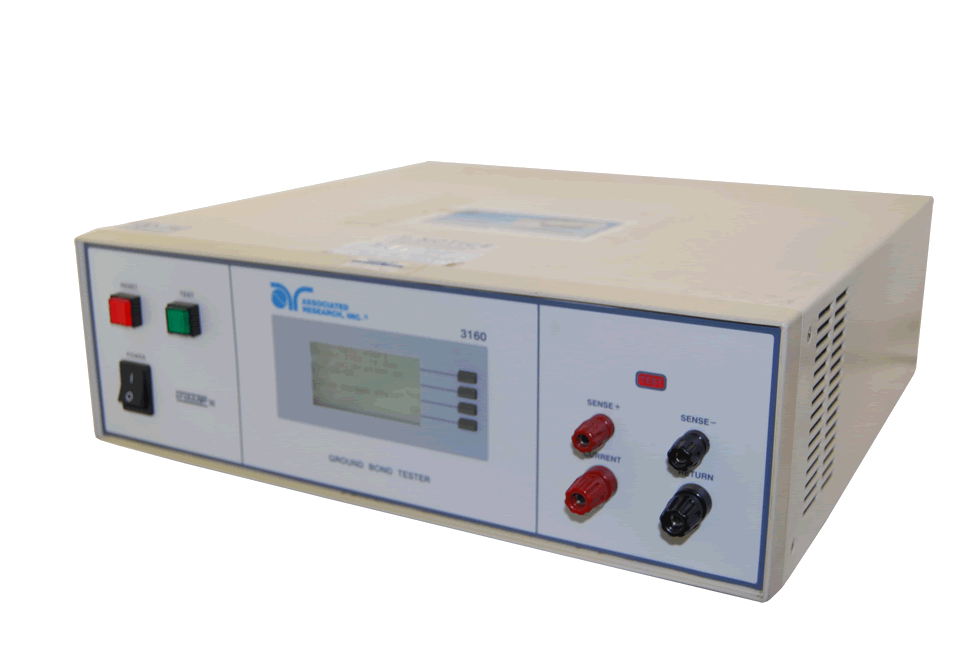

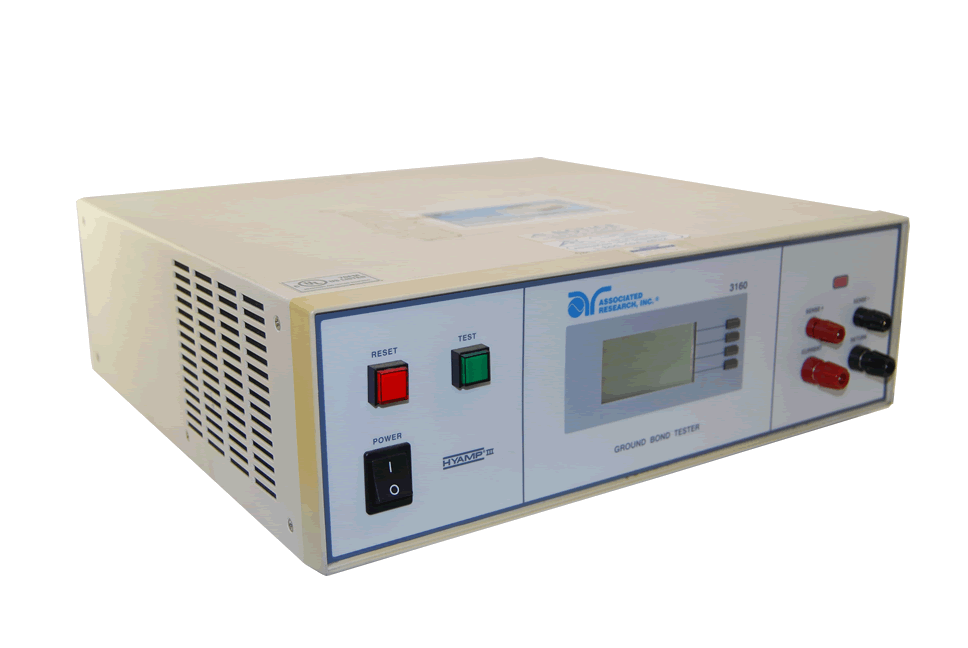

The Associated Research 3160 Hyamp III Ground Bond Tester features an enhanced graphic LCD. It provides 60 Amps of Ground Bond test current. The unit was designed to provide enough Ground Bond test current for products with higher input current ratings. The Associated Research 3160 Hyamp III Ground Bond Tester can be used stand alone or interconnected to the Hyamp III family of Hipot testers to form a complete test system. It can also be controlled through enhanced PLC Remote Control. It features the latest technology and is well suited for all manual Ground Bond test applications that require more than 30 Amps of test current.



Features:

  • Patented VERI-CHEK® feature prompts users through steps to validate the instrument's operation
  • Graphic LCD provides intuitive menu system to simplify the entire testing process from set-up to results
  • Patented CAL-ALERT® feature alerts the operator that the tester is due for re-calibration PLC Remote Control allows operators to remotely control the Ground Bond tester
  • 10 Memories with 3 Steps per memory for storing and recalling test parameters
  • Interconnects with an Associated Research Hipot tester to form a complete test system
  • 4 wire measurement and milli ohms offset for accurate Ground Bond test results
  • Electronic Dwell timer for more consistent and reliable testing



Specifications:

Input
Voltage 115/230 VAC ± 10%, user selectable
Frequency 50/60 Hz ± 5%
Fuse - 3130 6.3 A, slo-blow 250 VAC
Fuse - 3140 10 A, slo-blow 250 VAC
Fuse - 3130 15 A, slo-blow 250 VAC
Ground Bond Test Mode
Output Rating Current: 1.00 - 60.00 A AC
Voltage: 9 VAC, fixed
Resolution: 0.01 A
Regulation: ± (2% of setting + 0.02 A)
Output Frequency Range: 50 / 60 HZ, User Selectable
Dwell Time Setting Range: 0 and 0.5 - 999.9 secs
0 for continuous running



Resolution: 0.1 sec
Accuracy: ± (0.1% of setting + 0.05 secs)
Max. & Min. Limits Range:
0 - 150 m ohms for 30.01 - 60.00 A
0 - 300 m ohms for 15.01 - 30.00 A
0 - 600 m ohms for 6.00 - 15.00 A
Accuracy: ±(3% of setting + 3 mO)
Offset Capability Range: 0 - 100 mΩ
Resolution: 1 mΩ
Accuracy: ± (2% of setting + 2 mΩ)
