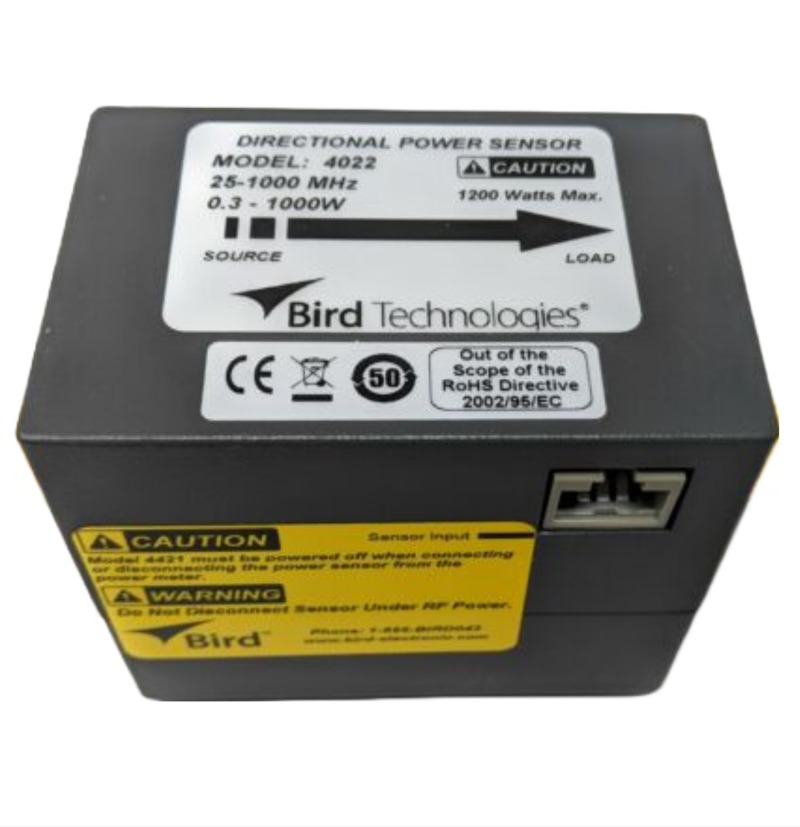

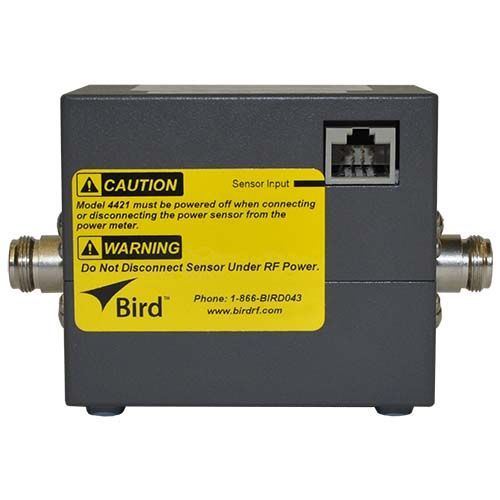

Bird 4022 Directional Power Sensor

Bird 4022 Directional Power Sensor
Request Quote Print Page
Manual Datasheet
The 4022 Power Sensor is part of the 4020 Series, Directional Power Sensors.

Features:

  • Cost-effective solution for maintaining critical RF systems
  • Only 4 models are required to cover the frequency range of 1.8 MHz to 1 GHz and power range from 300 mW - 10 kW
  • Full-Scale Accuracy ±3% for applications requiring accurate forward and reflected power measurement
  • Direct plug-in operation with industry-standard Bird® 4421 Multi-function Power Meter
  • Low insertion loss (<0.05 dB).

Specifications:

Frequency Range 25 MHz-1 GHz
Power Input 300 mW to 1 kW (1.2 kW max.)
Impedance 50 OHM
Accuracy, Fwd ± 3% of reading from rated Max to rated Min.
VSWR Measurement Range 1.00 to 2.00 (40.0 to 9.5 dB Return Loss)
Directivity, Min. 30 dB
Insertion Loss Max.
(with female“N”
connectors)
0.05 dB, 25-512 MHz, 0.13 dB,
512 MHz-1 GHz
VSWR, Max. 1.05:1, 25-512 MHz, 1.10:1, 512 MHz-1 GHz
Sampling Rate Nominal 2 readings per second
