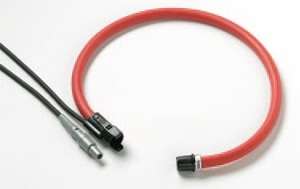

Electrical Characteristics |
Measurement Range | 20 to 1000 A (with a crest factor ≤3) |
Frequency Range | 40 Hz to 5 kHz |
Accuracy (@ 25°C) | ±1% of reading |
Linearity (10% to 100% of range) | ±0.2 % of reading per °C |
Temperature Coefficient | ±0.05% of reading per °C |
Position Sensitivity (w/ cable >25 mm from coupling) | ±2% of reading |
External Field (w/ cable >200 mm from head) | ±1% of reading |
Working Voltage (see Safety Standards) | 1000 V ac rms or dc |
General Characteristics |
Probe and Cable Material | Alcryn 2070NC, reinforced insulation, UL94 V0, Color: RED |
Probe Cable Length | 24 in. (610 mm) |
Probe Cable Diameter | 0.3 in. (8 mm) |
Transducer Bend Radius (min) | 1.5 in. (38.1 mm) |
Output Cable | 2 core screened, double insulated, 3 meters long |
Output Connector | LEMO 6 pin male connector |
Operating Temperature Range | -4 to +158°F (-20 to +70°C) (the temperature of the conductor under test shall not exceed 176°F/80°C) |
Storage Temperature Range | -40 to 176°F (-40 to +80°C) |
Operating Humidity | 15% to 85% (non condensing) |
Altitude | max 6562 ft. (2000 m) |
Degree of ingress protection | IP40 (IEC 60529) |
Safety Standards |
EN/IEC 61010-1:2001 EN/IEC 61010-031:2002+A1:2008 EN/IEC 61010-2-032:2002 Pollution Degree 2 Use of the Probe on uninsulated conductors is limited to 1000 V under CAT III installations and 600 V under CAT IV installations ac rms or dc and frequencies below 1 kHz. Note that the safety rating for the output to ground is limited to 30 V ac rms or dc by the connector specified. |
