Model |

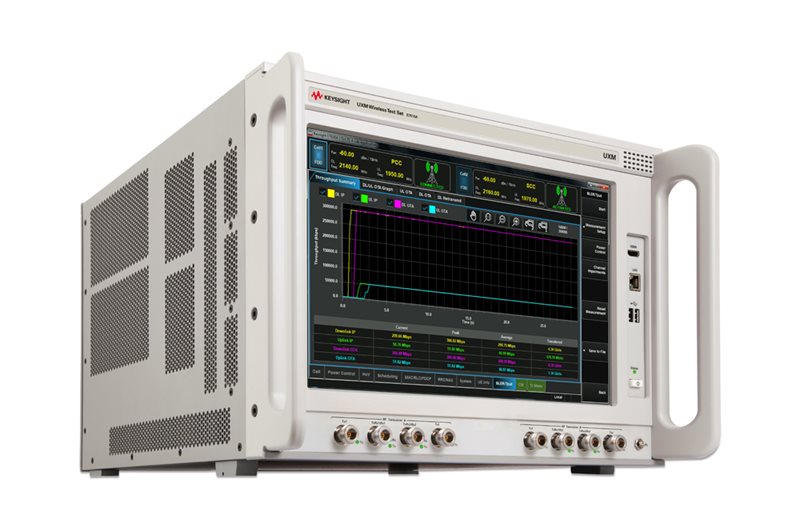

E7515A |
Operating Frequency Range |
300 MHz to 6.0 GHz |
Maximum Power Consumption (Instrument with 2 TRXs) |
1100 W |
Operating Temperature |
5°C to 45°C
30 g/m³ absolute humidity
5 to 85% non-condensing relative humidity |
Storage Temperature |
-40°C to 65°C
50 g/m³ absolute humidity
5 to 85% non-condensing relative humidity |
Altitude |
Up to 2000 m |
Phase Noise |
-90 dB at 10 kHz offset nominal |
Display |
15.4 in (391 mm) active matrix
1280 x 800 pixel resolution
TFT-LCD flat panel
Single-touch capacitive touchscreen |
Dimensions (H x W x L) |
Without feet & handles: 305 mm x 435 mm x 445 mm
With feet & handles: 321 mm x 435 mm x 504 mm |
Weight |
1 TRX: 33 kg
2 TRXs: 36 kg |
