Display |
Type
Size, resolution |
TFT color display with backlight
7 inch (152 mm x 91 mm), 800 x 480 pixels |
Interface |
USB mini B (USB 2.0)
Optical RS 232 (Baud rate 115 200)
Earphone 3.5 mm TRS, switches off the integrated speaker when connected
MicroSD-card interface for maps |
Antenna Detection |

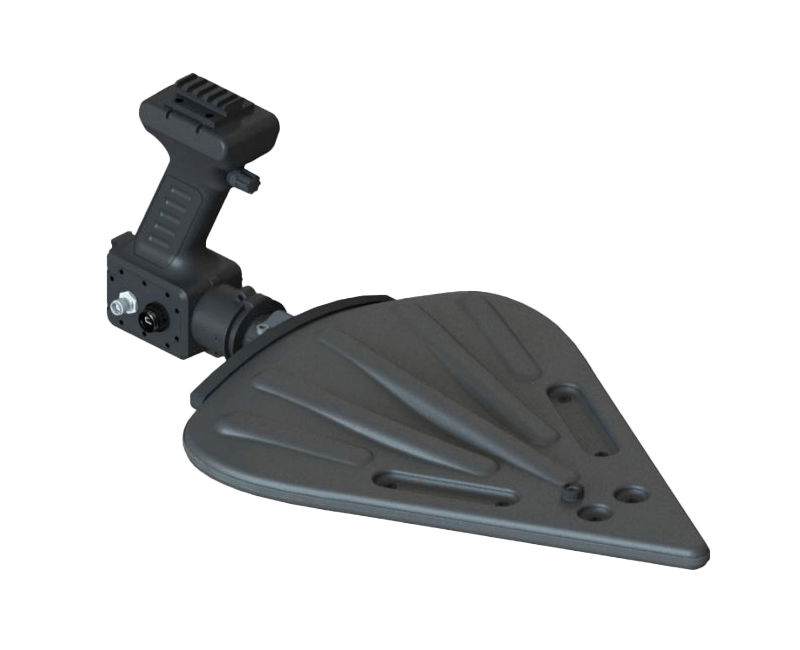

Narda Directional Antennas are automatically detected (type, polarization, consideration of typical antenna factors, preamp gain and frequency responses).
For other antennas parameters can be defined and selected manually. |
Cables and external devices |
Narda RF cables are automatically detected (type, frequency response and more)
Other cables and external devices (e.g. filters) can be defined and selected manually. |
Demodulation |
- Modulation types
- Representation
- Squelch
- Recording
|
- AM, FM, LSB, USB (see Scope mode for details on I/Q demodulation)
- Instrument speaker or external earphone
- -120 dB to -40 dB nominal, Off
- 16 kHz / 16 bit wave file recording (WAV)
|
Setups |
Up to 200 complete device configurations can be saved in the basic unit; can be uploaded and downloaded using IDA-3106 Tools software |
