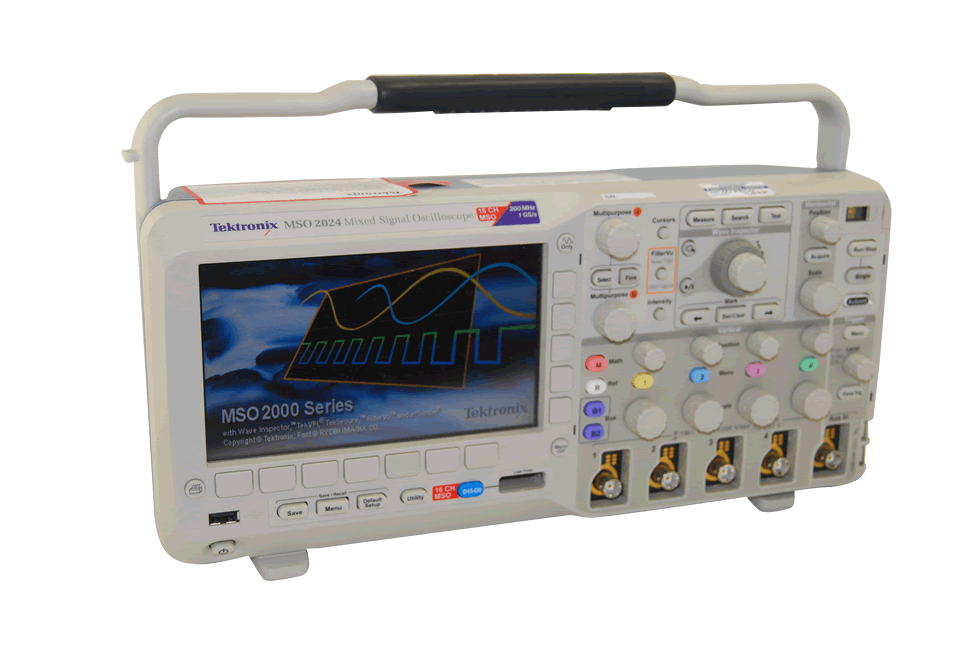

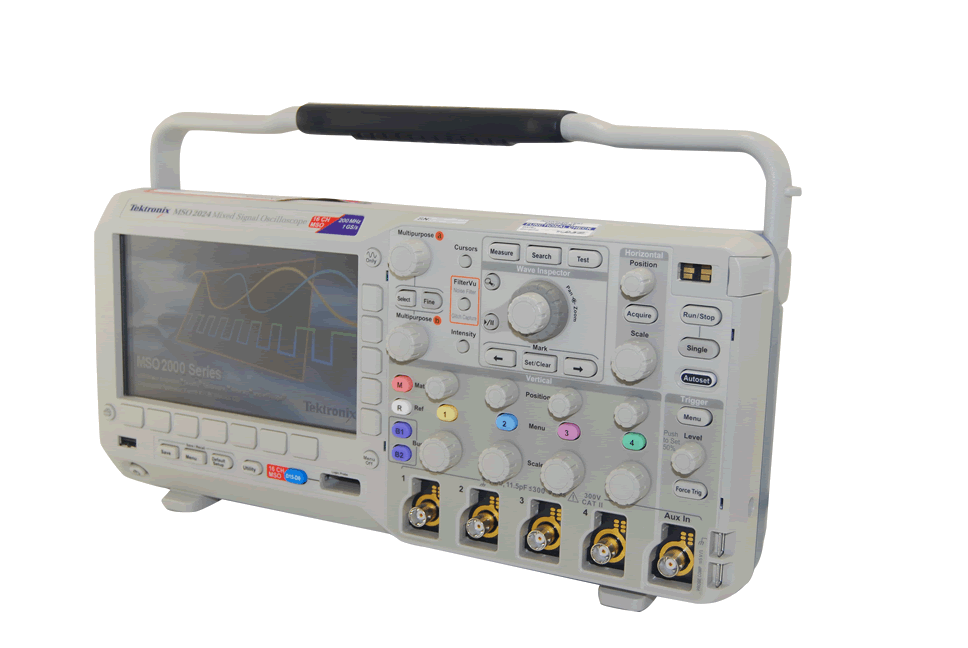

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the Tektronix MSO2024 Mixed Signal Oscilloscope 200 MHz, 1 GS/s delivers advanced debug features at an entry-level price. With 20 channels for analyzing analog and digital signals, you can quickly find and diagnose problems in complex designs. To capture long windows of signal activity while maintaining fine timing resolution, the Tektronix MSO2024 offers a deep record length of 1 Mpoints standard on all channels.
With Wave Inspector® controls for rapid waveform navigation and automated serial and parallel bus analysis, the MSO2024 Oscilloscope from Tektronix provides the feature-rich tools you need to simplify and speedup the debugging of your complex design.
Features
- Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
- Variable Low-pass Filter Allows for Removal of Unwanted Signal Noise while still Capturing High-frequency Events
- 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
- TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
- 7 in. (180 mm) Widescreen TFT-LCD Color Display
- Small Footprint and Lightweight – Only 5.3 in. (134 mm) deep and 7 lb. 14 oz. (3.6 kg)
Specifications
- 200 MHz Bandwidth
- 4 Analog Channels
- 16 Digital Channels
- 1 GS/s Sample Rate on All Channels
- 1 Megapoint Record Length on All Channels
- 5,000 wfm/s Maximum Waveform Capture Rate
- Suite of Advanced Triggers
