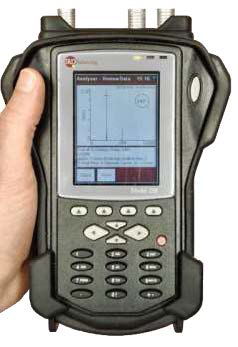

The IRD Model 258V Series II Vibration Analyzer Kit includes a vibration analyzer with a 0.16 Hz to 40 kHz frequency range and 100 – 25,600 lines of resolution. IRD Model 258V Series II kits contain a single tool that performs a range of maintenance, inspection service and diagnostic functions. The functionality of the Model 258V Series II can be expanded by adding an optional balancing bump test, compliance check and other software modules. The interface simplifies the assessment of the motion between two positions by providing the phase angle between the vibration signals.
Model |
Features |
E00350-1.2 |
2-Channel Vibration Analyzer
Tachometer & Balancing Included |
E00354-3 |
3-Channel Vibration Analyzer
Triaxial Accelerometer & Balancing Included |
Features
- Single, dual, or tri spectrum display with phase vector provides a simplified, yet full interpretation of vibration data
- 0.16 Hz to 40 kHz, 100 – 25,600 lines of resolution and CPM unit display option
- Tri-axial measurement support
- ESP™ enveloping for detection of bearing failures
- Intuitive graphical user interface
- Store & review measurements for later comparisons
- Measurement export using USB
- On screen user assistance
- Right or left-hand operation
- Rugged design & construction
- Large color display with backlight designed for use in direct sunlight
- Simple to use for non-vibration experts
Specifications
Vibration Input Type |
ICP, AC, DC |
Amplitude readout |
0.01 to 1,000 mV/EU auto-ranging |
Detection |
Peak, RMS, Peak to Peak |
Filter |
Dual, narrow band digital tracking filters with averaging |
Vibration Readout |
Micrometers, mils, millimeters/second, g’s, ESP |
Handheld configuration |
190 x 134 x 50 mm (Length x Width x Height)
Weight: 0.72 kg (1.6 lb) (no accessories)
Power: Rechargeable Lithium Ion Battery
Battery Usage: up to 8 hours on full charge
Sealing: IP 65 (Dust and Water Proof)
Drop Test: 2 meters (6.5 feet)
Temperature: Operating -10 to +50°C |
Processor |
806 MHz Marvell PXA320 |
Operating System |
Windows CE |
Battery |
Li-Ion smart battery pack (battery is recharged via main power adapter) |
Communication |
Active Sync via USB |
Internal Storage |
128 Mb |
PC Memory Storage Cards |
SDHC up to 8 Gb |
Display |
¼ VGA Color TFT screen |
