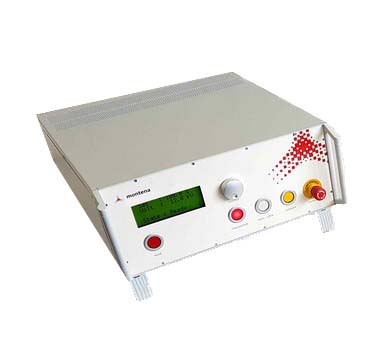

Montena EMP25K-2-23 NEMP Generator

Rent Montena EMP25K-2-23 NEMP Generator
Request Quote Print Page
Datasheet
The Montena EMP25K-2-23 NEMP Generator is a generator that uses direct capacitive circuits or Marx technology. Peaking circuits are often used to increase the impulse rise time. All generators have a remote control unit providing indications and settings of the charging voltage, gas pressures and pulse triggering as well as an interlock switch for safety. USB and RS232 interfaces are available for control software applications.


Specifications:


Standard: MIL-STD461-E / F, paragraph RS105
Peak Voltage: typically ≤ +0.2 kV to ≥ +25 kV
Impedance: 100 ohm
Rise Time (10-90%): 2.3 ns ± 0.5 ns
Pulse length on 100 ohm (50 – 50 %): 23 ns ± 5 ns
Output connector: HVM50K
