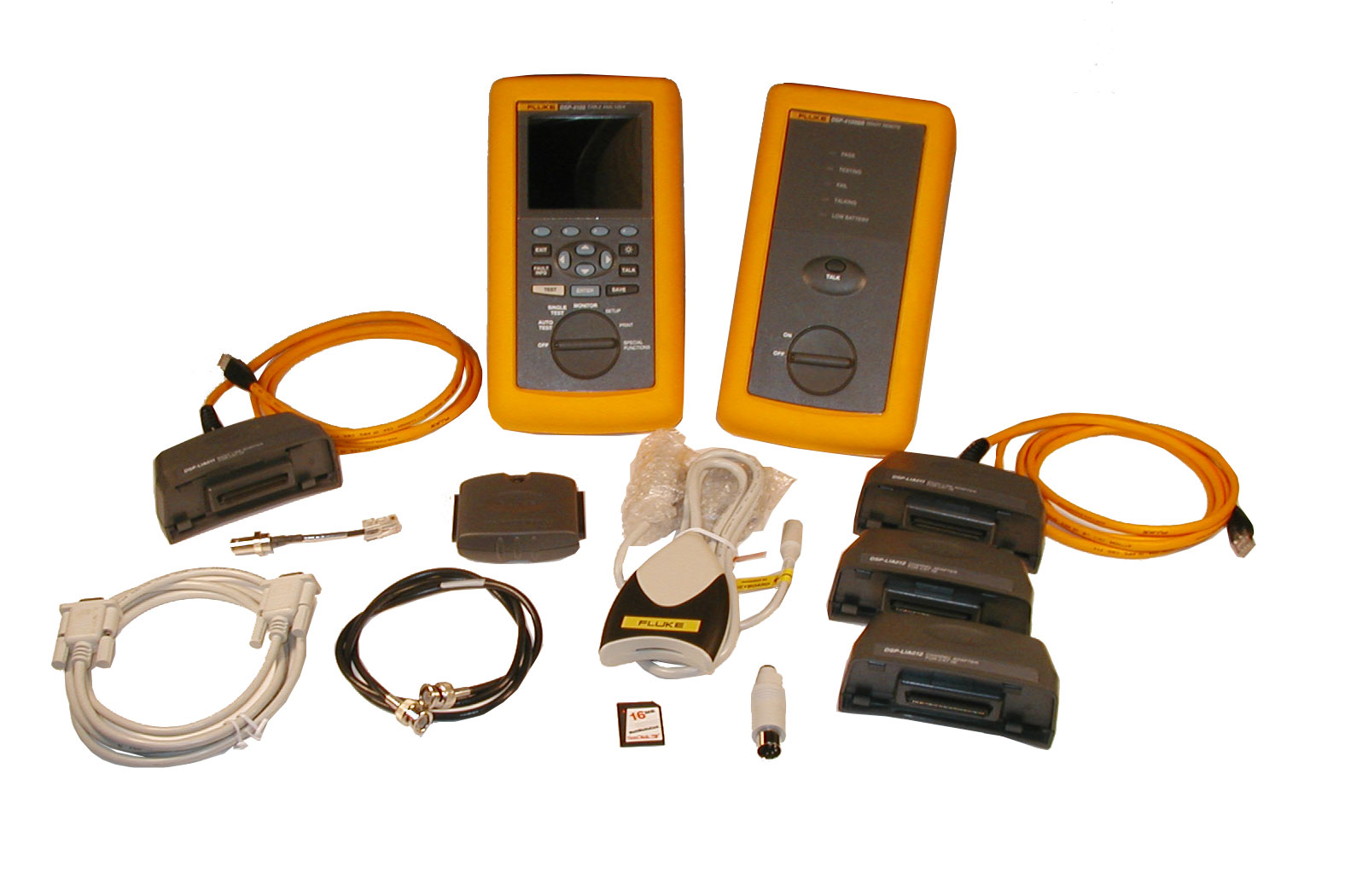

Fluke DSP-4100 Digital Cable Analyzer - Cat and Fiber
Discontinued
Test Fiber Optic CablesWhen paired with the optional Fluke DSP-FTK Fiber Test Kit, the DSP-4000 series detects bad connections, bad splices, broken fibers, and loss of power from bends and fiber-type mismatches.
DSP-LINK Software
Windows based DSP-LINK software brings "point and click" simplicity to the task of transferring data or updating your DSP-4000 series analyzer.
- Supported Tests:
Wire Map
Length, Propagation Delay, Delay Skew
Attenuation
NEXT, NEXT @ Remote
Power Sum NEXT, PSNEXT @ Remote, ELFEXT, ELFEXT @ Remote, Power Sum ELFEXT,
Attenuation-to-Crosstalk Ratio (ACR), ACR @ Remote
Characteristic Impedance
DC Loop Resistance
Return Loss (RL), RL @ Remote - Cable Tone Generator
- Rechargeable NiMH battery with 10-12 hours typical battery life
- Weight: 3.25 lb
- Fluke Digital Signal Processing technology delivers consistent, repeatable accuracy
- Superior diagnostics make troubleshooting fast and easy
- Intuitive user interface makes learning a breeze
- Rugged design endures tough working conditions
- Graphic reports show professional certification results
- Memory card allows instant data hand-off
TIA Cat 3, 4, 5 and 5E Basic Link or Channel
Cat 6 with optional DSP-LIA101S
ISO 11801/EN 50173 Class A, B, C or D
IEEE 10Base5, 10Base2, or 10base-T
IEEE Token Ring 4 Mbps or 16 Mbps
IEEE 100Base-TX, 100Base-T4
IEEE 802.12 (100VG-AnyLan) 4-UTP or 2-STP
ANSI TP-PMD
Aus/Nz Class C, D Basic Link or Channel
Cat 6 with optional DSP-LIA101S
ISO 11801/EN 50173 Class A, B, C or D
IEEE 10Base5, 10Base2, or 10base-T
IEEE Token Ring 4 Mbps or 16 Mbps
IEEE 100Base-TX, 100Base-T4
IEEE 802.12 (100VG-AnyLan) 4-UTP or 2-STP
ANSI TP-PMD
Aus/Nz Class C, D Basic Link or Channel
SKU: FLUK-DSP4100
