California Instruments 801RP AC Power Source 16 Hz - 500 Hz, 270 V

Rent, lease, or rent to own California Instruments 801RP AC Power Source 16 Hz - 500 Hz, 270 V
Enlarge Image

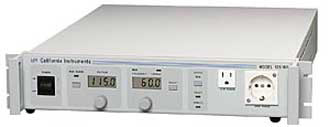

California Instruments 801RP
Request Quote Print Page

With European and US outlet sockets to connect the load, the California Instruments 801RP AC Power Source 16 Hz - 500 Hz, 270 V is ideal for a wide variety of applications. Universal, Power Factor Corrected (PFC) input allows these products to be used anywhere in the world to provide a convenient source of variable utility power for the testing and evaluation of domestic and commercial equipment. All common line voltage and frequency combinations are covered. In addition, the frequency range covers 500 Hz, making these products ideal for commercial and defense avionics applications. A built in current measurement function eliminates the need for an external current shunt or transformer. Load current of the UUT (Unit Under Test) can be read directly on the large LCD display to 0.1 A. For additional protection, a current limit function can be set from zero to the maximum current rating. The low total harmonic distortion of the output makes the 801RP and 1251RP suitable AC sources for IEC 1000-3-2 Current Harmonics pre compliance testing. Loads requiring up to 4.6 Arms at 230 Vrms with peak currents up to 12 A can be tested with the 1251RP while the 801RP can supply up to 3.0 Arms. This covers many loads that fall under the IEC standard.

California Instruments 801RP Features
  • Avionics Applications
  • IEC 1000-3-2 Test Applications
  • Extensive Transient Control
  • SCPI Protocol Programming Commands
  • Generate 10 ms or longer voltage dropout
  • Recall eight complete instrument setups from non-volatile memory with a single SCPI command
