Dranetz 658 Power Quality Analyzer

Dranetz 658 Power Quality Analyzer
Enlarge Image
Dranetz 658
Request Quote Print Page
Manual Datasheet

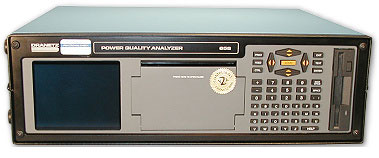

The Dranetz 658 captures, records, stores, analyzes, and displays power line disturbances affecting reliable operation of sensitive electronic, computer-based equipment. With its options installed, you can also capture, record, store, analyze, and display environmental parameters such as temperature and humidity changes, conducted radio frequency interference, and radiated radio frequency interference.


Features:

  • 4 Input Channels
  • Real-Time Scope Mode
  • Internal UPS (5 min.)
  • Flat-Panel Display Screen
  • Zoom Magnification
  • RS-232 Serial Ports
  • 512K RAM Event Memory
  • Internal Graphics Printer
  • Input Cable Set with Pallet
  • 3.5" Disk Drive
  • Harmonic Analysis



Specifications:

Voltage 0 - 600 Vrms
Current 0 - 3000 Amps
Accuracy ±1% reading, ±0.2 full scale
Impulse Measurements 2.4 to 6144 Volts peak, 2.4 to 6000 Amps peak, 1 microsecond minimum duration
Sampling Rate 7.2 kHz/channel for RMS, 1.85 MHz/channel for impulse
Frequency 45 - 65 Hz (310 - 445 Hz Optional)
Optional Inputs 8 independent differential channels, configurable as voltage or current - 0 - 10 VDC, 0 - 20 mA DC, 12.5 Hz sampling



Dranetz 658 Options:

  • 656-PA-1001 8-Channel Transducer
  • 656-XD-1001 Temperature & Humidity Monitor (requires 656-PA-1001)
  • 656-XD-1002 Conducted RF Monitor (requires 656-PA-1001)
  • 656-XD-1003 Radiated RF Monitor (requires 656-PA-1001)
  • 658-2400M Internal Model
  • TR2019B Current Probe, 1 to 300 A, 2" max conductor
