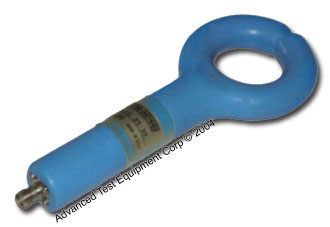

Electro-Metrics MFC-25/30 Magnetic Field Probe

Electro-Metrics MFC-25/30 Magnetic Field Probe
Enlarge Image
Electro-Metrics MFC25
Request Quote Print Page

A set of three loop probes covering the frequency range 10kHz-230MHz designed to search for RF magnetic leaks especially in cabinets and shielded enclosures. They are rubber covered and color-coded for easy identification. This particular item number(315) refers to the hire of a single loop.

Electro-Metrics MFC25 Specs

(Single Units, End user selects which probe)


  • Frequency Range:
    • MFA-25 (red) - 10kHz to 520kHz
    • MFB-25 (white) - 480kHz to 25MHz
    • MFC-25 (blue) - 22MHz to 230MH
  • Output Connector: BNC
  • Weight: 0.49kg
  • Dimensions: 240mm x 90mm (loop) x 30mm(handle dia).
