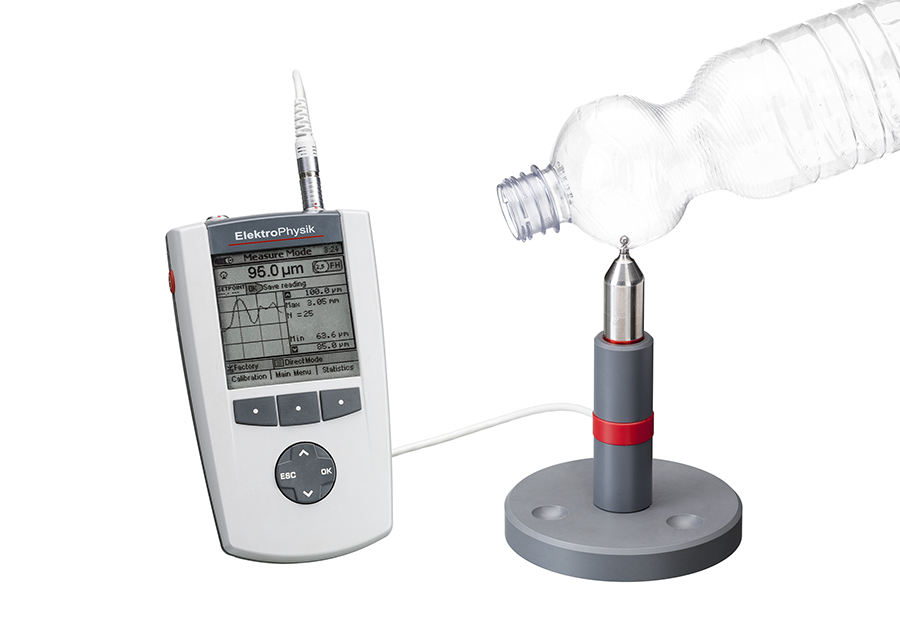

ElektroPhysik MiniTest 7200 FH Wall Thickness Gauge
The ElektroPhysik MiniTest 7200 FH Wall Thickness Gauge is a magnetic thickness gauge with a 24mm measuring range, 0.1µm resolution and ±1µm repeatability. ElektroPhysik MiniTest 7200 FH thickness gauges are ideal for operation in production areas and quality laboratories due to their small size and portability, and in applications where accurate measurement of sharp corners, small radii and/or complex shapes are required. The ElektroPhysik MiniTest 7200 FH ensures easy, non-destructive and highly accurate wall thickness measurement on all types of non-ferrous products, regardless of their size, shape, and material.
| Sensor Model | Measuring Ranges | Measuring Tolerance |
|---|---|---|
| FH 4 | 0…2.0 mm with 1.5 mm steel ball 0…3.5 mm with 2.5 mm steel ball 0…6.0 mm with 4 mm steel ball |
0…2.0 mm: ± (3 μm + 1% of reading) 0…3.5 mm: ± (5 μm + 1% of reading) 0…6.0 mm: ± (10 μm + 1% of reading) |
| FH 10 | 0…4.0 mm with 2.5 mm steel ball 0…7.0 mm with 4.0 mm steel ball 0…10.0 mm with 6.0 mm steel ball 0…13.0 mm with 9.0 mm steel ball |
0…4.0 mm: ± (5 μm + 1% of reading) 0…7.0 mm: ± (10 μm + 1% of reading) 0…10.0 mm: ± (20 μm + 1% of reading) 0…13.0 mm: ± (20 μm + 1% of reading) |
| FH 10M | 0…16.0 mm with 4.0 mm magnetic ball 0…24.0 mm with 6.0 mm magnetic ball |
0…16.0 mm: ± (40 μm + 2% of reading) 0…24.0 mm: ± (60 μm + 2% of reading) |
| General Specifications | |
|---|---|
| Low range resolution | 0.1 μm (FH 4) / 0.2 μm (FH 10) |
| Repeatability | Better than ± (1 μm + 0.5% of reading) |
| Measuring principle | Magnetostatic |
| Logging rate | 1, 2, 5, 10, 20 readings per second (selectable) |
| Data memory | 240.000 values (limited to 100,000 values on MiniTest 7200 FH) |
| Calibration modes | Factory, Zero, Zero + up to 4 points |
| Measuring units | metric (μm, mm), imperial (mils, inch) |
| Statistical charting | Numeric, trend, and histogram (with MiniTest 7400 FH only) |
| Interfaces | RS232 TTL + IrDA 1.0 + USB (via connection box) |
| Operating temperature | –10 °C to +60 °C (Storage temperature: –20 °C to +80 °C) |
| Dimension/Weight | 153 mm x 89 mm x 32 mm / 310 g 6 in. x 3.5 in. x 1.3 in./11 oz. (Gauge with batteries only) |
| Power supply | 4 x AA (LR06) batteries, or optional power unit (90 – 240 V~/48 – 62 Hz) |
- Reliable wall thickness measurement of non-ferrous materials
- Up to 24 mm thickness
- For packaging materials such as bottles, glass or plastic containers
- For composite materials, aluminium or titanium parts of complex shapes in the aviation or automotive industry
- Menu-guided user interface
- Extremely accurate through digital signalprocessing
SKU: ELPH-FH7200
