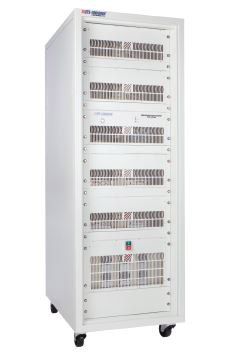

ETS-Lindgren 8000-026 RF Power Amplifier
The ETS-Lindgren 8000-026 RF Power Amplifier is a 2500W/1900W power amplifier, designed primarily for EMC applications that include MIL-STD 461 RS103, 200 V/m. Utilizing GaAs technology, the ETS-Lindgren 8000-026 amplifier provides higher linearity, a rugged design, and better efficiency performance compared to silicon-based amplifiers. The ETS-Lindgren 8000-026 amplifier provides a very low distortion and tolerance for a 100% mismatch.
| Electrical Frequency Range | 10 kHz to 250 MHz |
| Nominal Output Power | 10 kHz to 100 MHz, 2500W 100 MHz to 250 MHz, 2500W to 1900W |
| Gain Variation | ±3 dB |
| Harmonics | -20 dBc Maximum |
| Output Impedance | 50 Ω |
| Input VSWR | 2:1 Maximum |
- MIL-STD 461 RS103, 200 V/m
- High-Reliability GaAs Design
- Excellent Performance and Efficiency
- Safety Interlock
SKU: ETSL-8000-026
