Fluke 5200A Precision Alternating Voltage Calibrator

Fluke 5200A Precision Alternating Voltage Calibrator

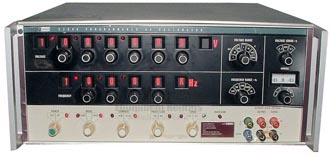

Enlarge Image
Fluke Calibration 5200A
Request Quote Print Page
Manual 5200A Datasheet
The Model 5200A Alternating Voltage Calibrator is a precision high-performance alternating voltage source with proven reliability and exceptional stability and accuracy over a broad frequency range. It is specified over a wide 0°C to 50°C operating range for use in both laboratory and manufacturing environments. Amplitude is controlled in six ranges from 1 mV to 100 V. Resolution to 1,199,999 counts yields 20% over-range capability with 1 nanovolt steps on the 1 mV range, up to 0.1 mV steps on the 100 V range. Outputs from 100 μV rms to 120V rms are provided, with up to 50 mA load current capability.

Fluke Calibration 5200A Specs
Voltage Ranges 1 mV, 10 mV, l00 mV, lV, 10V, 100V
Frequency Ranges l00 Hz, 1 kHz, 10 kHz, l00 kHz, 1 MHz
Amplitude Accuracy 10 Hz to 30 Hz
± (0.1 % of setting +0.005% of range)
1, 10, 100 volt ranges.
± (0.1 % of setting +10 jJ.V
1, 10, 100 millivolt ranges.

30 Hz to 20 kHz
± (0.02% of setting +0.002% of range)
1, 10, 100 volt ranges.
± (0.02% of setting +10 jJ.V)
1, 10, 100 millivolt ranges.

20 kHz to 100 kHz
± (0.05% of setting +0.005% of range)
1, 10, 100 volt ranges
± (0.05% of setting +20 jJ.V
1, 10, 100 millivolt ranges.

0.1 MHz to 1 MHz
± (0.33% of setting +0.03% of range)
1, 10, 100 volt ranges.
± (0.33% of setting +30 jJ.V)
1, 10, 100 millivolt ranges.
Frequency Accuracy 100-Hz to 100-kHz Ranges
±(1 % of setting
+0.1 % of range)

1-MHz Range
±(3% of setting
+0.3% of range)
Max Output Voltage 120V rms, up to 83.33 kHz
Max Output Current 50 mA rms from 10% to 120% of range
