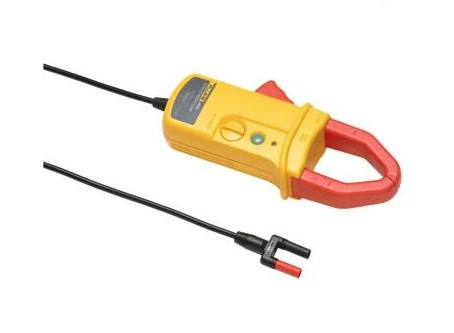

Fluke i410 AC/DC Current Clamp
Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools.
Features:
-
Battery-powered Hall-effect probe measures 1A to 400 A
-
1mV/Amp output guarantees easy reading on your meter
-
Take accurate current readings without breaking the circuit
-
Maximum conductor Ø 32 mm
-
CAT III 600 V safety rating
-

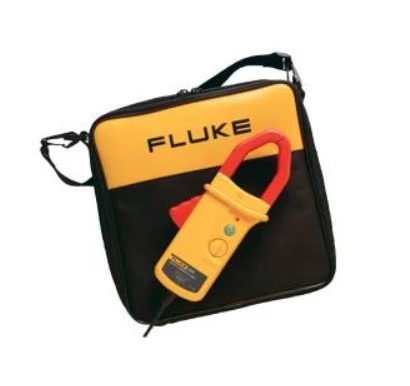

Also available with softcase for DMM and clamp (i410 kit)
-
One year warranty
Specifications:
|
Specified Current Range: |
1 A – 400 A ac rms *
1 A – 400 A dc |
|
Usable Current Range: |
0.5 A – 400 A |
|
DC Accuracy (zero adjusted, conductor centered) |
3.5 % + 0.5 A (0 A –
400 A) |
|
AC Accuracy |
3.5 % + 0.5 A, 45 Hz –
400 Hz, Crest Factor
≤ 3.
(0 A – 400 A) |
|
Bandwidth |
3 kHz |
* With a true-rms voltmeter, the minimum ac current is limited to the low end of the specified mV ac range.
