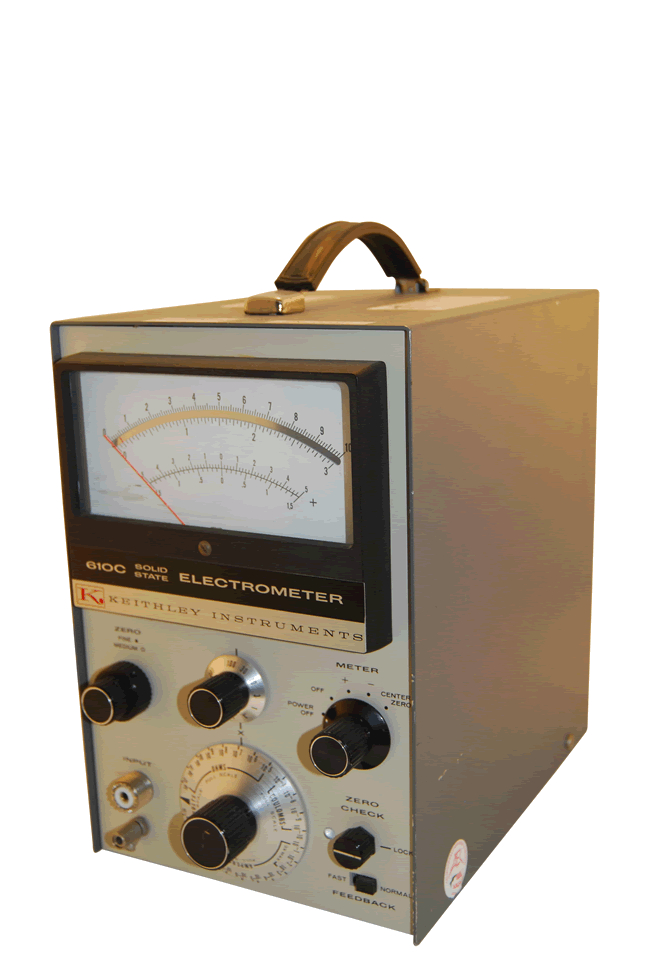

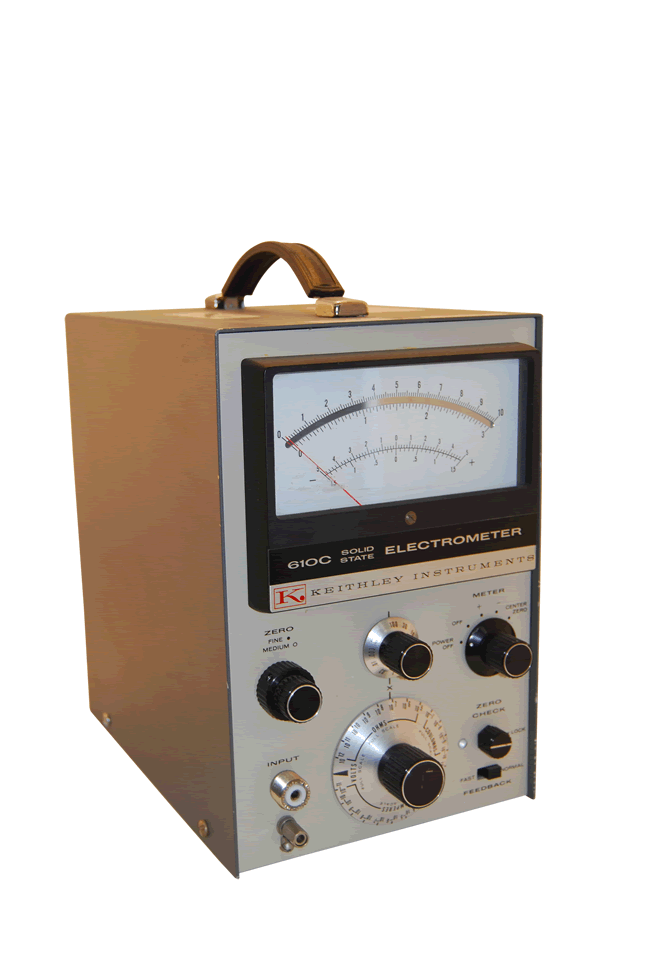

Keithley 610C Electrometer

Keithley 610C Electrometer
Enlarge Image
Keithley 610C Electrometer Keithley 610C Electrometer Keithley 610C Electrometer
Keithley 610C
Request Quote Print Page
Manual Other1

The 610C Electrometer is a versatile, completely solid-state instrument which measures a wide range of dc voltage, current, resistance and charge. The Electrometer's input resistance of greater than 10 14 ohms is the result of extensive instrument development with high input impedance transistors. The Model 610C has all the capabilities of conventional VTVMs, but it can also make many more measurements without circuit loading.



Specifications:

  • 5 x 10-15A input current
  • 1014 ohms input resistance to 100V
  • Measures V, I, R, Q, and is a current source



As a Voltmeter
  • Range: 0.001V full scale to 100V in eleven 1x and 3x ranges
  • Input Impedance: >1014 ohms shunted by 20pF. Input resistance may also be selected in decade steps from 10 to 1011 ohms



As an Ammeter
  • Range: 10-14A full scale to 0.3A in twenty-eight 1x and 3x ranges



As an Amplifier
  • Input Impedance: >1014 ohms shunted by 20pF. Input resistance may also be selected in decade steps from 10 to 1011 ohms
  • Unity Gain Output: At DC, output = input
  • Voltage Recorder Output: ±3V for full scale input
  • Gain: 0.3, 0.1, etc. to 3000
  • Frequency Response (within 3db): DC to 40kHz at gain of 1 and lower
  • Current Recorder Output: ±1mA for full scale input



As an Ohmsmeter
  • Range: 100 ohms full scale to 1014 ohms in 25 linear 1x and 3x ranges



As a Coulombmeter
  • Range: 10-13C full scale to 10-5C in seventeen 1x and 3x ranges



General
  • Polarity: Meter switch selects left-zero (positive or negative) or center-zero scales. Output polarity is not reversed.
  • Connectors:
    • Input: Teflon-insulated UHF; ground binding post
    • Voltage or current output: Amphenol 80-PC2F
    • Unity gain output, chassis ground: Binding posts
