Keithley 616 Digital Electrometer

Keithley 616 Digital Electrometer
Enlarge Image

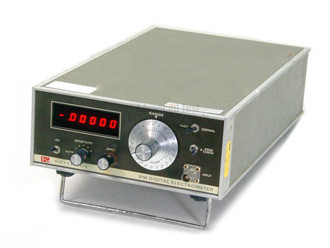

Keithley 616
Request Quote Print Page
Manual

The Keithley 616 Digital Electrometer is an automatic ranging multipurpose electrometer featuring sensitivity to 10 microvolts per digit. Its 3%-digit LED display provides 0.2% voltage accuracy for a wide range of measurements all with the convenience of automatic polarity and decimal point. The 616 is essentially a digital multimeter, optimized for measurements from high source impedance, which provides wide range capability when measuring current, resistance, and charge in addition to voltage.

Features:

  • measures V, I, R, and Q
  • input resistance greater than 2 x 1014 ohms
  • current noise - 2 x 10-15 ampere peak-to-peak
  • autoranging, autopolarity
  • floating capability to ± 1000 volts
  • optional isolated output/control
  • can be calculator controlled
