Keithley 706 Scanner/Data Logger System

Keithley 706 Scanner System
Enlarge Image

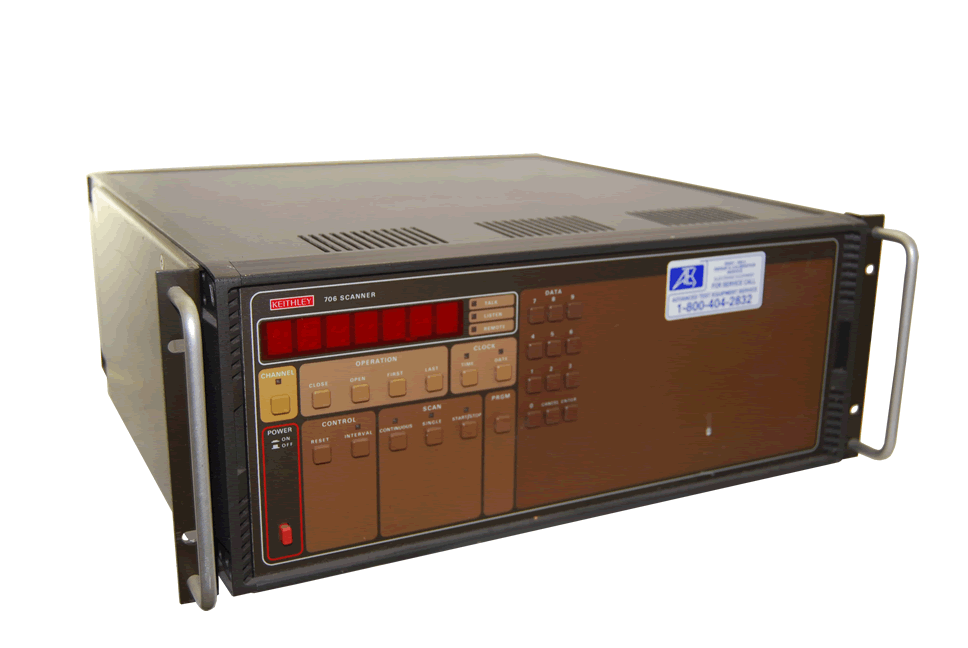

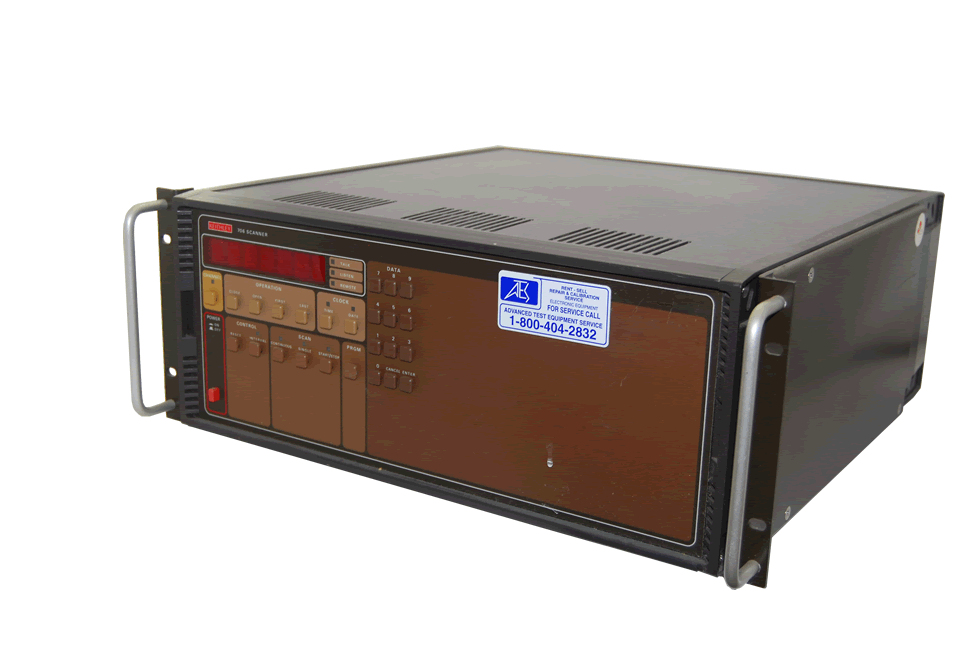

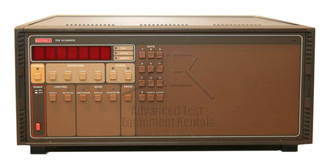

Keithley 706 Scanner System Keithley 706 Scanner System Keithley 706 Scanner System
Keithley 706
Request Quote Print Page
Specifications

The Model 706 is an IEEE-488 bus compatible scanner that can accommodate ten plug-in scanner cards. With ten scanner cards installed up to 100 2-pole channels can be on the same IEEE address. Using four additional Model 706s in a daisy chain configuration up to 500 2-pole channels can be on the same IEEE address. The Scanner adheres to standard IEEE-488 interface bus protocol. This enables the Model 706 to be incorporated into any measurement that uses programmed control through the IEEE-488 bus.


Features:

  • Capacity: ten plug-in cards per mainframe
  • Switching Rate: 100 channels/second (10ms), programmable to 1 channel/16 minutes (999.999s)
  • IEEE-488
  • Internal Clock
  • Switching Cards



Specifications:

Switching Card Model No. of Channels
4 x 5 Matrix 7052 20
High Current 7053 10
High Voltage 7054 10
General Purpose 7056 10
Thermocouple 7057A 9+ Ref.
Low Current 7058 10
Low Voltage 7059 10
