11975A Amplifier, 2 GHz to 8 GHz

11975A Amplifier, 2 GHz to 8 GHz
Enlarge Image

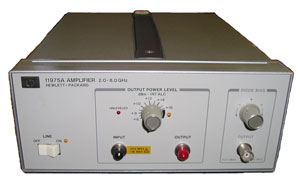

Keysight 11975A
Request Quote Print Page

The 11975 general purpose, leveled microwave amplifier has a frequency range of 2 to 8 GHz and adjustable output of +6 to +16 dBm. In addition, the amplifier has an adjustable bias current output port that supplies a maximum of ± 11 mA at +3 volts. This bias current is needed by some external harmonic mixers. The amplifier has automatic level control (ALC) that can be switched on and off. An "unleveled" light indicates that ALC is off.

Keysight 11975A Features
  • Frequency range 2.0 to 8.0 GHz
  • 40 milliwatt (+16 dBm) output power
  • Adjustable, calibrated power level
  • Switchable automatic level control
  • 50 Ohm impedance
  • SMA(f) connectors, input/output
  • 100,120/220, 240Vac; 48-440 Hz operation; 36 VA
  • Weight 6.8 lb; Size: 213 mm (8.4 in) W x 102 mm (4.0 in) H x 297 mm (11.7 in) D
