Keysight 1630G Logic Analyzer, 25MHz - 100MHz

1630G Logic Analyzer

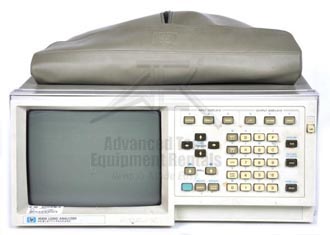

Enlarge Image
Keysight 1630G
Request Quote Print Page
Manual

The 1630G Logic Analyzers are interactive state and timing analyzers for use in the design and and troubleshooting of digital systems. Many functions of the systems are the same. The 1630G has an additonal 30 state channels. It features a menu system for defining measurements which simplifies setup time by reducing the number and complexity of front panel keys.



Features:

  • external clock rates to 25 MHz
  • Two phase demultiplexing
  • 1024 deep acquisition memory per channel
  • pattern, sequence, and occurrence count triggering
  • storage qualification
  • state and time interval histogramming
  • 100 MHz sample rate on up to 16 channels
  • x and o cursor system for waveform time interval measurements
  • post acquisition processing for auto answers and statistical characterization


Specifications:

Power 115/230 Vac, 22% to +10%, 48-66 Hz, 275 W max,
Temperature 0 to +55°C (32 to 131°F
Humidity Up to 95% relative humidity at +40°C (non-condensing)
Weight 13.6 kg (30 lbs) shipping 18.1 kg (40 lbs)
