16500C Logic Analysis System Mainframe
Enlarge Image

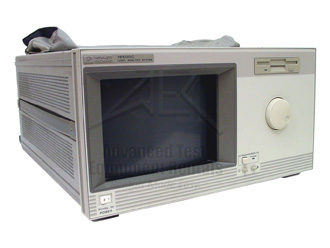

Keysight 16500C
Request Quote Print Page
Manual Supplemental Document
Logic Analyzer System Mainframe (Configured to Order)
Keysight 16500C Features
Mass Storage
  • Hard Disk Drive - MS-DOS® compatible formatted disk drive IDE interface bus

  • Floppy Disk Drive
    Capacity - 1.44 MB formatted
    Media - 3.5 inch floppy
    Formats - MS-DOS or LIF


Internal RAM Memory
  • LAN, IEEE 802.3

  • Standard 8 MB
    Option 001 16 MB

  • Protocols Supported - TCP/IP, NFS, FTP, SNMP

  • Program Interface - Instrument settings and operating modes may be remotely programmed through data files transmitted via NFS protocol.

  • Data Files - ASCII formatted data is available from modules as indicated in the table below. Screen images are available in black and white or color TIFF and PCX file formats.
