1662A, 68 Channel Logic Analyzer

1662A Logic Analyzer 68 Channels
Enlarge Image

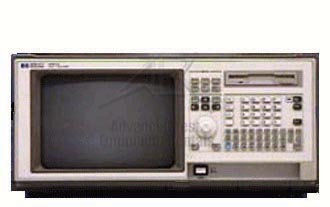

Keysight 1662A
Request Quote Print Page
Manual
The 1662A logic analyzer can help you rapidly troubleshoot elusive hardware failures, verify proper bus operation, and debug software during real-time execution. It has enough timing and state analysis speed to handle even high-performance applications.

Keysight 1662A Features
  • State and timing channels: 68
  • Timing analysis:
    Conventional: 250 MHz all channels, 500 MHz half channels
    Transitional: 125 MHz all channels, 250 MHz half channels
    Glitch: 125 MHz half channels
  • State analysis: 100 MHz in all modes
  • State timing memory depth: 4K/channel, 8K in half-channel modes
  • Setup/hold time: 3.5/0 ns to 0/3.5 ns adjustable in 500 ps increments
Keysight 1662A Specs
Number of Channels State/Timing 68Ch
Conventional Timing Speed 250MHz (All Channel - 500MHz (Half Channel)
Glitch Timing Speed 125MHz (Half Channel)
Hold Time Window 125MHz (All Channels - HP-IB)
State Speed/Timing Speed 100MHz
State/Timing Memory Depth 4k (All Channels) - 8k (Half Channels)
Transitional Timing Speed Hard drive - 250MHz (Half Channel)
Type Stand-Alone
