Keysight 1670E 136 Channel Logic Analyzer

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
1670E 136 Channel Logic Analyzer Memory Depth
Enlarge Image

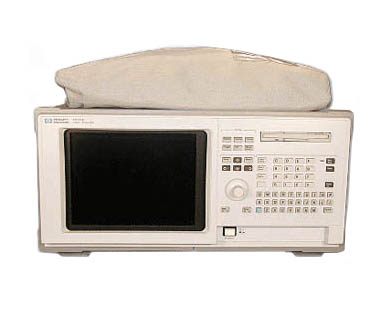

Keysight 1670E
Request Quote Print Page
Manual Supplemental Document
The 1670E 136 Channel Logic Analyzer can take real-time code traces showing cause and effect events separated by hundreds of thousands of microprocessor instructions. Having a trace that long can be very important when you need to look through nested interrupt service routines and other lengthy sections of code to find answers. And, with the added depth, you wont have to worry about program loops that can quickly fill the memory buffer in a normal logic analyzer.
Keysight 1670E Specs
  • State and Timing Channels: 136
  • Memory Depth: 1M per channel, 2M per half channel
  • State Analysis Speed: 100 MHz in all modes
  • Timing Analysis Speeds:
    • Conventional: 125 MHz on all channels
    • 250 MHz on half channels
  • Probe Input R & C: 100k ohms and ~ 8 pF
  • Trigger Resources:
    • Patterns: 10
    • Edge and glitch terms: 2
    • Ranges: 2
    • Timers: 2
  • Trigger sequence levels: 12 with state analysis and 10 with timing analysis
  • Trigger macros: 23 predefined trigger sequences with graphical representations and plain language descriptions
  • Mass storage: Hard disk drive and 1.44 MB flexible disk drive
  • Ethernet LAN interface: Standard equipment; twisted pair and coaxial connectors
  • OS Boot Method: Flash ROM
