Keysight 1670G, 136 Channel Logic Analyzer

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
1670G, 136 Channel Logic Analyzer 150 MHz
Enlarge Image

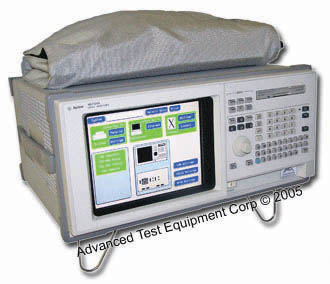

Keysight 1670G
Request Quote Print Page
1670G Datasheet
The 1670G, 136 Channel Logic Analyzer has deep memory options that let you capture more data and save you from having to set up complex triggers. The integrated oscilloscope option lets you view analog and digital signals simultaneously. The integrated pattern generator option lets you stimulate a device under test while you capture its response with the logic analyzer.
Keysight 1670G Features
  • 136 channels of logic analysis
  • Solid performance: 150 MHz state speed, up to 500 MHz timing speed, 64K standard aquisition memory, 256K memory with Option 001, 2M memory with Option 002
  • Option 003 Oscilloscope: 2 channel, 500 MHz, 2 GSa/s, 32K memory
  • Option 004 Pattern Generator: 32 channel, 100M vector/sec, 256K vector deep
  • 2 GB hard drive and 1.44 MB DOS floppy drive
  • VGA resolution, color, flat-panel display helps you to find information quickly
  • Navigating through the well-designed user interface is made simple via your choice of either mouse or front-panel operation
  • Optional PC-style keyboard supported
  • File formats for ASCII data and PCX/TIFF/EPS screen shots
  • Centronics printer port, GPIB and RS-232 programmability
  • LAN for remote operation via X-Windows and data transfers via FTP/NFS
  • 23 predefined trigger functions with graphical representations and plain language descriptions for easy setup of powerful measurements
Keysight 1670G Specs
Channel count 136
Timing analysis speed 250/500 MHz (full/half channels)
State analysis speed 150 MHz
State clock/qualifiers 4
Memory depth/channel 64/128K (full/half channels)
with option 1 256/512K
with option 2 2/4M

Option 3 (oscilloscope)

2-channel, 500 MHz, 2 GSa/s, 32K sample oscilloscope

Option 4 (pattern generator)

32-channel, 100/200 MHz, 256K vector pattern generator

Built-in display color
LAN port Thin LAN & Ethertwist
