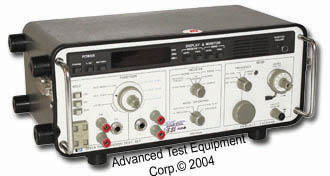

HP Agilent 3551A Transmission Test Set, 40 Hz - 60 kHz

HP/Agilent 3551A Data Communications Tester
Enlarge Image
Request Quote Print Page
Manual
Transmission Impairment Measuring Sets (TINS)


Qualify Circuits for Voice, Data or Program

The HP 3551A Transmission Test Set is a rugged, portable test sets that provide the basic analog tests to isolate faults and to qualify circuits for voice, data, and broadcast service.



Range

Trans. Level: -60 to +10 dBm
Trans. Freq.: 40 Hz to 60 kHz
Rec. Level: -70 to +15 dBm
Rec. Freq.: 40 Hz to 60 kHz
Message Cicuit Noise: 0 to 85 dBm
Noise with Tone: (600 and 900 ohms) 10 to 85 dBm
Noise to Ground: 40 to 125 dBm
Impedances: 135, 600, 900 ohms



Filters

C-Message
3 kHz flat
Program
15kHz flat
