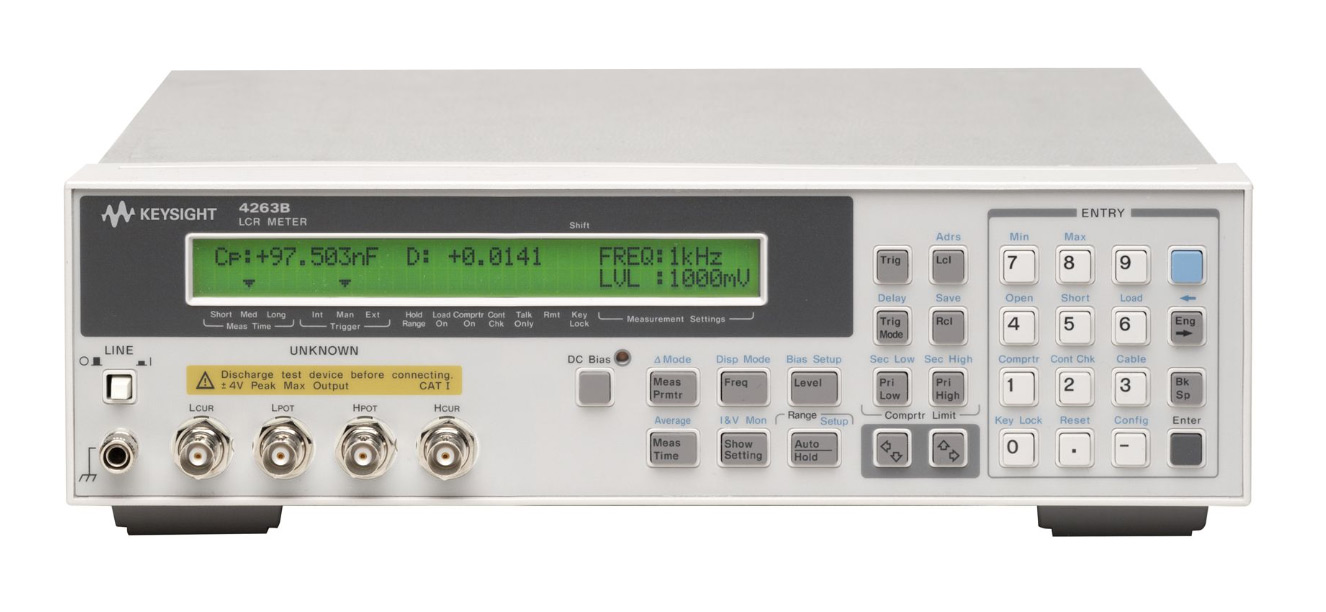

Keysight 4263B LCR Meter, 100 Hz - 100 kHz

HP Agilent 4263B LCR Meter, 100 Hz - 100 kHz
Enlarge Image
Keysight 4263B
Request Quote Print Page
Manual

The Keysight Technologies LCR meter makes fast measurements on components.The instruments performance ranges from general bench-top impedance measurements to complex transformer, coil and electrolytic capacitor measurements. It is optimized for applications that require precision and versatility.

System features

  • 0.1% basic accuracy
  • High-speed measurement: 25 ms
  • DC and six frequencies (100/120/1 k/10 k/20 k/100 kHz)
  • Measurement parameters: Z, Y, Theta, R, X, G, B, C, L, D, Q, Rdc, N, M
  • AC Test signal level: 20 mV to 1 mVrms in 5 mV step
  • Internal DC bias (1.5 V, 2 V)
  • Test signal level monitor function
  • High-speed contact check
  • Wide capacitance test range
  • OPEN/SHORT/LOAD correction
  • Up to 4 m cable extension
  • Wide fixture availability
