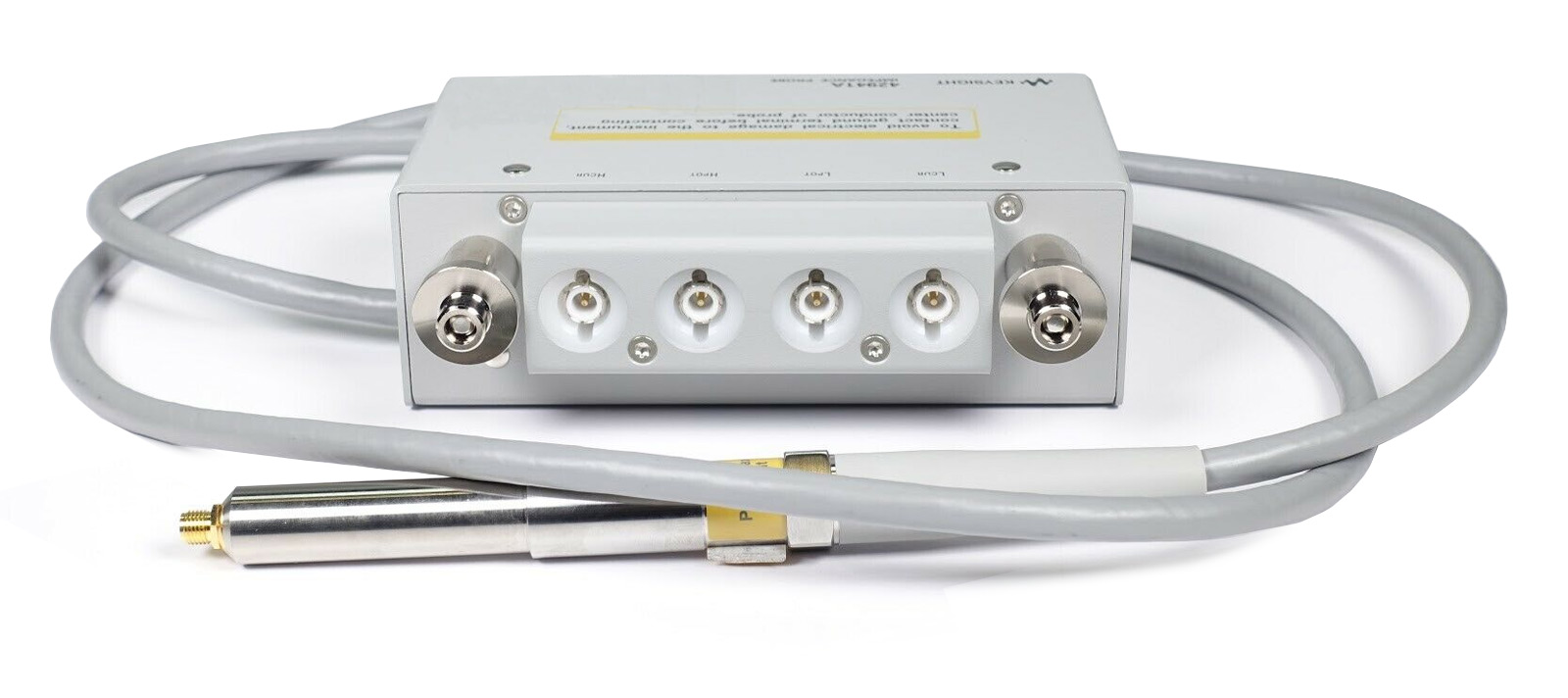

HP Agilent 42941A Impedance Probe Kit

HP/Agilent 42941A Impedance Probe Kit
Enlarge Image
Request Quote Print Page
Manual Other1

The 42941A is the impedance probe kit designed for the 4294A Precision Impedance Analyzer. When used with the 4294A, this kit allows impedance measurement and analysis in a wide frequency range of up to 110 MHz. Its 1.5-meter cable for probing allows you to evaluate implemented circuits and mounted devices.



Specifications:

Frequency 40 Hz to 110 MHz
Maximum Voltage ± 42 V peak max. (AC+DC)
Output Impedance 25 Ω (Nominal) DC coupled
Operating Environment temp. 20°C to +75°C (except four-terminal pair connection block) 0°C to +55°C (four-terminal pair connection block)
humidity 15% to 95%RH ( @ wet bulb temp. < 40°C)
Non-operating Environment temp. -40°C to +70°C
humidity ≤ 90 % RH ( @ wet bulb temp. <65°C)
Dimensions 350 (W) × 100 (H) × 280 (D) mm (Includes carrying case)
