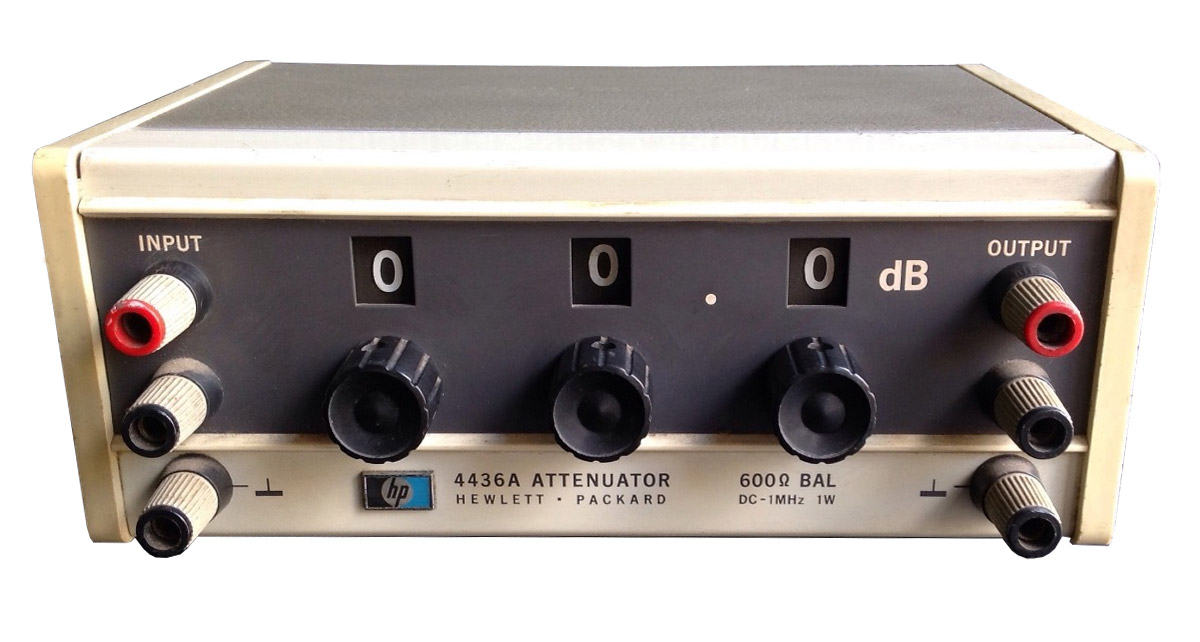

Keysight 4436A Attenuator, DC - 1.5 MHz
DC - 1 MHz, 0 dB - 112 dB, 0.1 dB steps, 1W, 600 ohms. Keysight 4436A Attenuator units were previously manufactured by Agilent Technologies.
| Maximum Attenuation | 119.9 dB |
| Attenuation Increments | 0.1dB |
| Input/Output Impedance | 600 ohms balanced |
| Frequency Range | dc to 1.0 MHz usable to 1.5 MHz |
| dc to 1.5 MHz (0 to 110 dB) | |
| dc to 1 MHz (0 to 119.9 dB) | |
| Maximum Input Power | + 30 dBm (24.5 V max) |
SKU: AGIL-4436A
