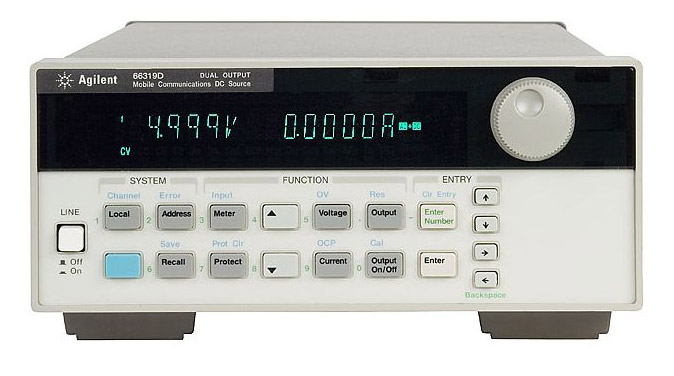

HP/Agilent 66319D Mobile Communications DC Source
Enlarge Image
Request Quote Print Page
Datasheet

The HP / Agilent 66319D Mobile Communications dc Source offers a built-in advanced measurement system to accurately measure battery current drains when the device operates in different modes (such as talk mode, active mode, standby mode, and off/sleep mode). Measurements made during these modes are critical for ensuring that your devices are operating properly and that you are getting the most out of the battery.


With the battery emulation features, the HP / Agilent 66319D Mobile Communications dc Source allows you to test your devices under the same power conditions that exist in actual use. Emulating the battery is key when characterizing battery operating life and detecting early product failures. The dc source simulates the effects of internal resistance of the battery, enabling it to emulate the operation of various battery types or batteries in different charge states. Plus, the HP 66319D can simulate negative resistance so that you can compensate for voltage drop due to wiring in a fixture.


Agilent has designed in the capability and flexibility that is required for accurately testing todays communications devices as well as your next generation designs for cell phones (formats include: 3G, cdma2000, WCDMA, CDMA, TDMA, GSM, PCS, DECT, TETRA, PHS, NADC), PDAs, BluetoothTM enabled devices, and Wireless LAN access devices. The HP / Agilent  66319D high performance model are recommended for new automated test system platforms and for R&D applications.



Features:

  • Fast output response technology
  • Programmable output response compensation
  • Advanced DSP-based dynamic measurements
  • Current sinking for testing and calibrating charger circuitry
  • Extensive protection features (including broken sense lead detection)
  • GPIB Interface, SCPI (Standard Commands for Programmable Instruments), VXIplug&play drivers
  • Output resistance programming (positive and negative)
  • Superior output stability with up to 6 meters of load leads
  • Excellent transient voltage drop (typically < 30 mV)
  • Three current measurement ranges
  • Additional advanced battery drain measurements (CCDF, long term battery drain)



Specifications:

  • Input range: -25 to +25 Vdc
  • dc readback accuracy: 0.04% + 5 5 mV
  • ac + dc readback accuracy (at 25°C ±5°C) with dc plus a sinewave input > 25 mV rms: 1% + 5 mV (60 Hz to 10 kHz)
Auxilary output
Output ratings

Voltage: 0 to 12V
Current: 0 to 1.5A

Programming accuracy
Voltage 0.2% + 40 mV
+Current 0.2% + 4.5 mA

dc measurement accuracy
Voltage: 0.2% + 15 mV
+Current: 0.2% + 3 mA
Ripple and Noise (20 Hz to 20 MHz)
Voltage
rms: 1 mV
peak-to-peak: 6 mV

Current
rms: 2 mA
