Keysight 7046A X-Y Recorder - 2-Pen, High Speed

HP/Agilent 7046A X-Y Recorder - 2-Pen
Enlarge Image

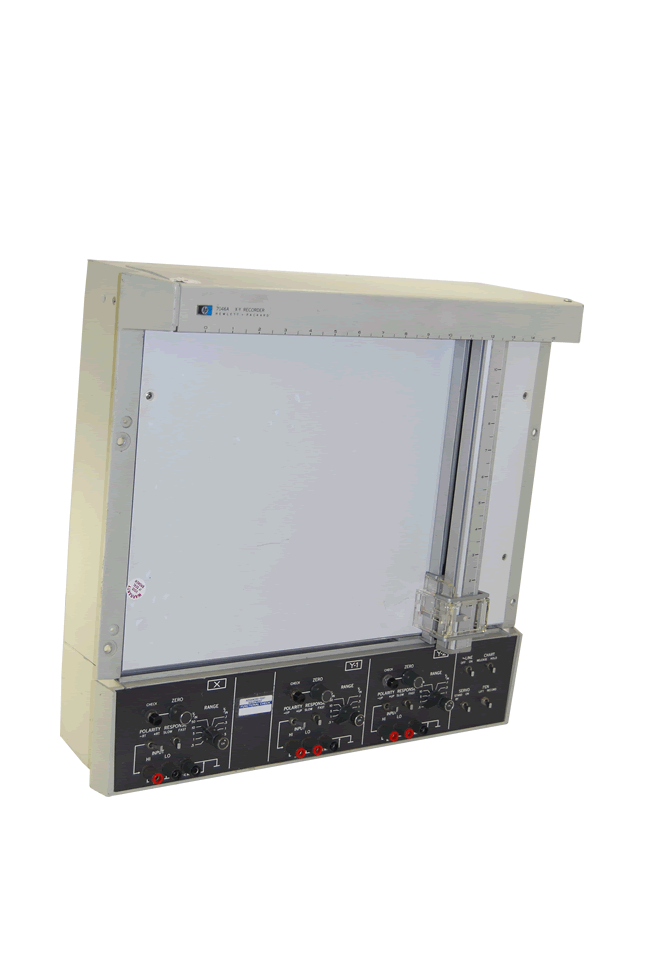

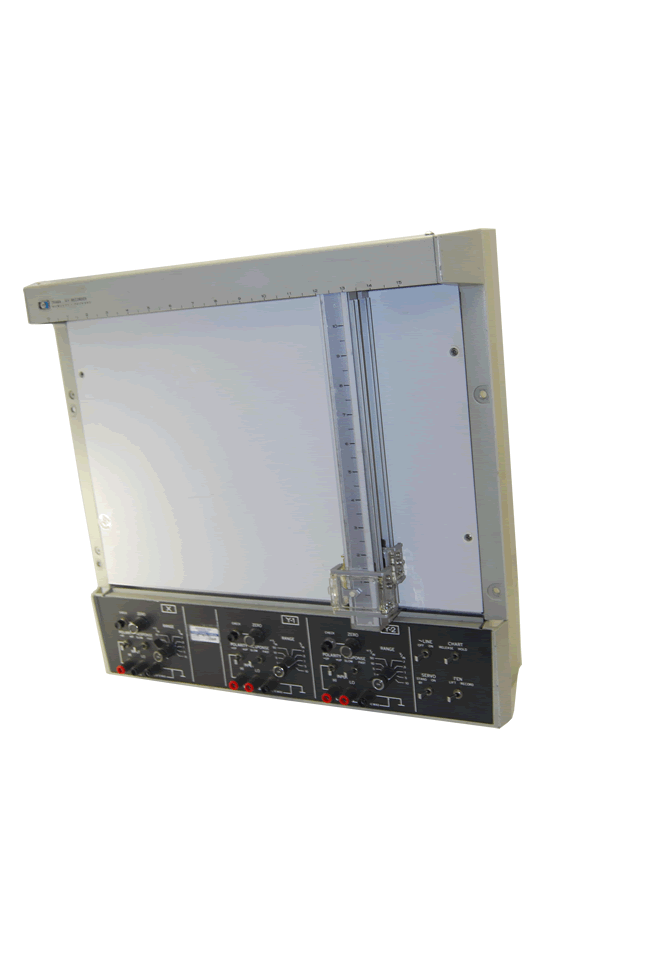

HP/Agilent 7046A X-Y Recorder - 2-Pen HP/Agilent 7046A X-Y Recorder - 2-Pen
Keysight 7046A
Request Quote Print Page
Datasheet
0.5mV - 10V/inch Analog DC Voltage X-YY Recorder

Keysight 7046A Features
  • Type of Input: front and rear input. Floating, guarded. Polarity reversal switch on front panel
  • Input Ranges: 0.5mV/in. to 10V/in. (metric available in 0.25mV/cm to 5V/cm). Continuous vernier between ranges
  • Input Resistance: 1 megohm constant on all ranges
  • Time Base: Optional: 6 speeds; 0.25 to 50 sec/cm (English is 0.5 to 100 sec/in.) switchable to X axis
  • Writing Area: 25 x 38 cm (10 x 15")
