Keysight 8502A / Reflection Test Set 500 kHz-1.3 GHz

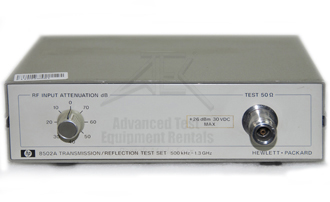

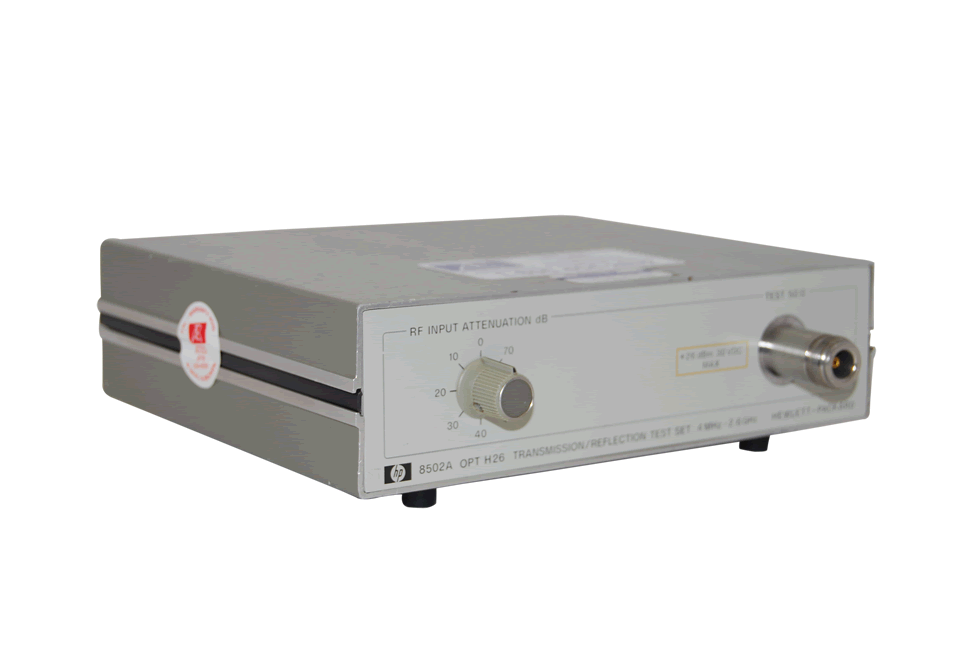

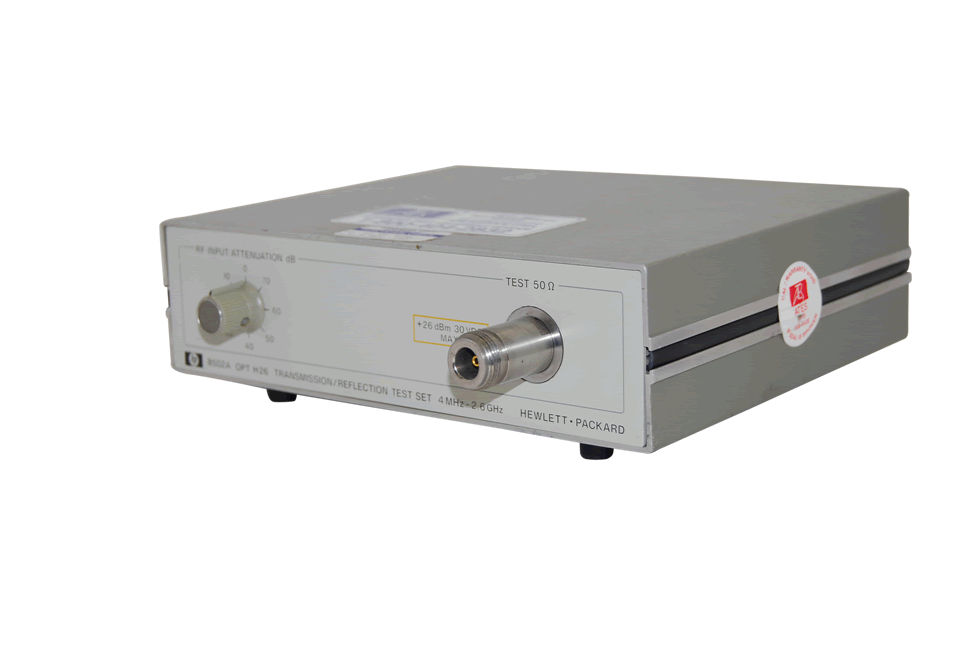

8502A Transmission/Reflection Test Set
Enlarge Image
8502A Transmission/Reflection Test Set 8502A Transmission/Reflection Test Set 8502A Transmission/Reflection Test Set
Request Quote Print Page
Manual

The HP 8502A Transmission set provides all of the RF hardware necessary to make simultaneous transmission and reflection measurements between 500 kHZ and 1300 MHz. The test set consists of an RF power splitter to develop a reference or incident signal, a directional bridge to develop a reflected signal, and a attenuator to control the signal incident on the device under test.



Specifications:

Frequency Range 500 kHz to 1.3 GHz
Impedance 50 ohms
Directivity > 40 dB
Transmission
Magnitude >± 0.8 dB
Phase < ± 8°
