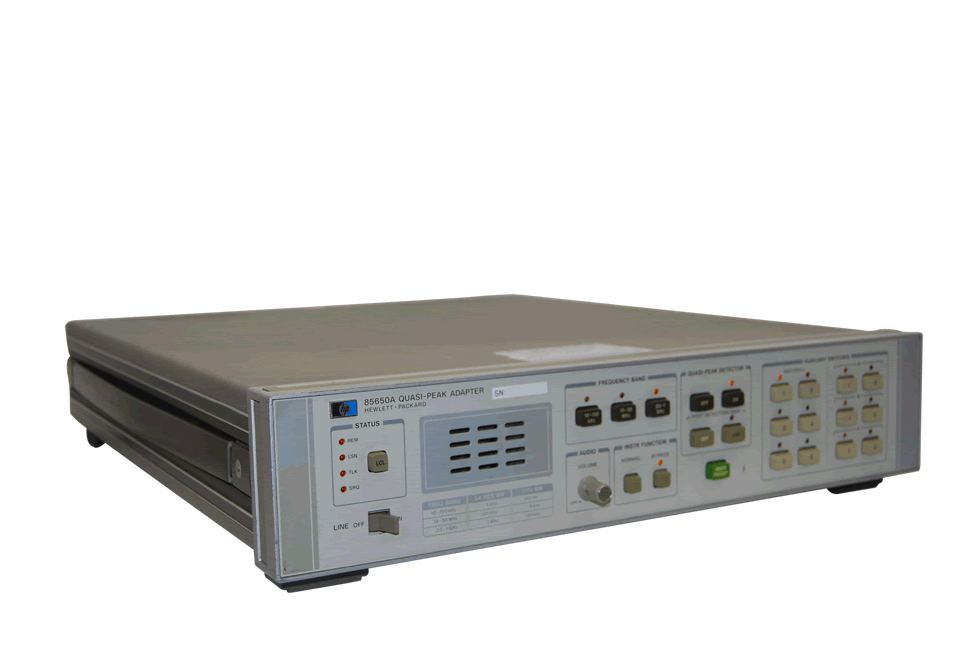

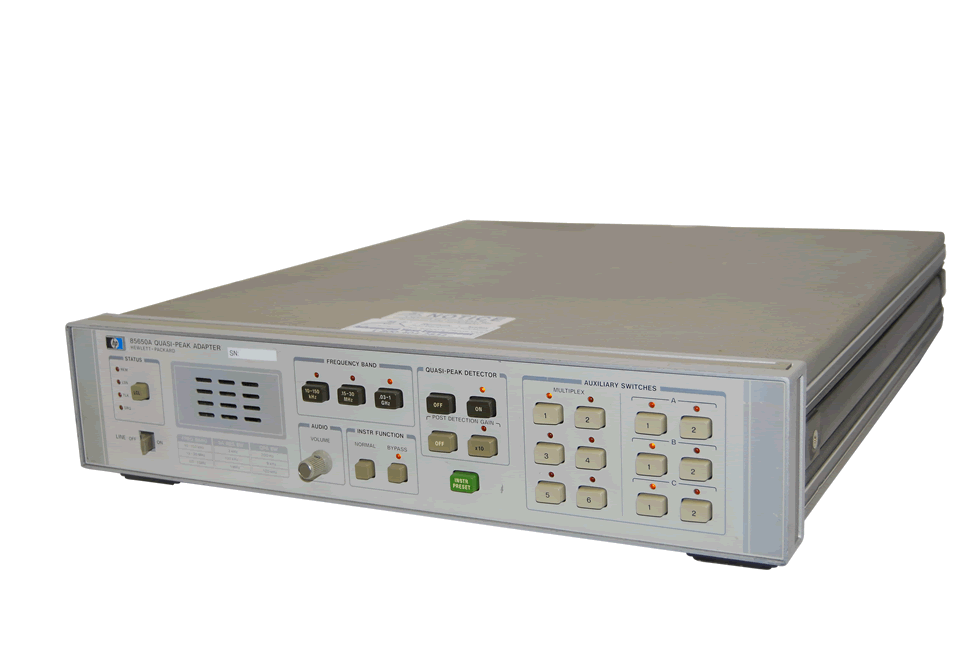

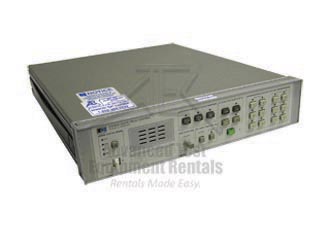

The 85650A quasi-peak adapter is an accessory used with the 8566B or 8568B spectrum analyzers for performing quasi-peak measurements as recommended by CISPR. These include the correct 6 dB bandwidths (200 Hz, 9 kHz, 120 kHz) and the specified detector charge and discharge time constants.



Specifications:

Frequency Band (MHz) Bandwidth at 6 dB Charge TC (ms) Discharge TC (ms)
0.01–0.15 200 Hz 45 500
0.15–30 9 kHz 1 160
30–1000 120 kHz 1 550



Quasi-peak Response to CISPR Pulse (dBμV)

PRF (Hz) 10 to 150 kHz 0.15 to 30 MHz 30 to 1000 MHz
1000 64.5 ± 2.5 68.0 ± 2.5
100 64.0 ± 2.5 60.0 ± 1.5 60.0 ± 1.5
60 63.0 ± 2.5
25 60.0 ± 1.5
20 53.5 ± 2.5 51.0 ± 2.5
10 56.~± 2.5 50.0 ± 3.0 46.0 ± 3.0
5 52.5 ± 3.0
2 47.0 ± 3.5 39.5 ± 3.5 34.0 ± 3.5
1 43.0 ± 3.5 37.5 ± 3.5 31.5 ± 3.5
Isolated Pulse 41.0 ± 3.5 36.5 ± 3.5 28.5 ± 35
