Ling 330 4000 lb Shaker

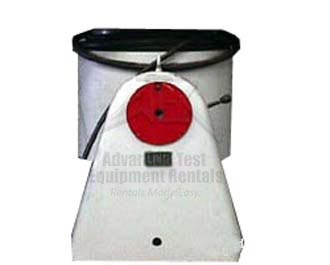

The Ling Model 330 Shaker is designed to provide a convenient means for high level vibration testing under conditions of high static loads, high altitudes, and high humidity. It is a wide frequency band electro-dynamic force transducer capable of producing a force of 4000 pounds (sine vector). The shaker operates in a 5 to 3000 Hz frequency range from either sine or random waveform input, converting the electrical current supplied into mechanical force.
The shaker consists of a magnetic structure which houses and supports an armature assembly and field coils. The structure is mounted on trunnion assemblies which allow ±180° rotation of the thrust axis. The trunnion assemblies are mounted on a base equipped with casters for portability.
The shaker contains armature overtravel and overtemperature protection switches and a field overtemperature protection switch.
The shaker employs a completely sealed cooling system designed to cool directly from a clean raw-water supply.
| Rated force (sine vector) | 4,000 lbs |
| Useful frequency range | 5 to 3,000 Hz |
| Rated acceleration (bare table) | 100g vector |
| Rated velocity | 70 in. per sec. |
| Rated displacement | 1 in. peak to peak |
| Fundamental resonant frequency (bare table) | 2,700 Hz |
| Flexure stiffness | 530 lbs. per in. |
| Effective overtravel limits (from the neutral horizontal position) | 0.5 inch in the outward direction |
| 0.6 inch in the inward direction | |
| Body suspension natural frequency | 8 Hz |
| Maximum load 10g vector | 375 lbs |
| Maximum load 20g vector | 175 lbs |
| Maximum load 100g vector | 15 lbs |
