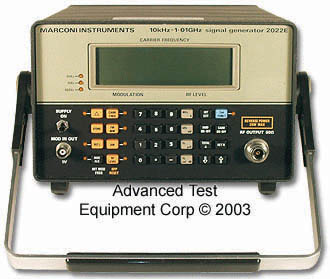

Marconi 2022E AM /FM Signal Generator, 10 kHz - 1.01 GHz

Larger

Documents

Manual

The Marconi 2022E AM /FM Signal Generator, 10 kHz - 1.01 GHz product has been replaced by a new product.

The 2022E is a light-weight synthesized signal generator having a frequency range of 10 kHz to 1.01 GHz and providing comprehensive amplitude, frequency and phase modulation facilities with an RF output level range of -127 dBm to +10 dBm. It is designed to cover a wide range of RF applications in development, production and maintenance. Output frequency is phase locked to an internal or external frequency standard and frequencies up to 100 MHz can be set to a resolution of 10 Hz, and above that to a resolution of 100 Hz.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Frequency Range	10 kHz to 1.01 GHz
Displayed Resolution	10 Hz up to 100 MHz
	100 Hz above 100 MHz
	1 kHz above 1,000 MHz
Frequency Response	±1.5 dB
Modulation Oscillator Frequency	1 kHz
Distortion	<1% total harmonic
Internal Frequency Standard	10 MHz
RF Output Level	-127 to +10 dBm
Output Level Accuracy	±1 dB for output levels above -10 dBm
Output Level Accuracy	±2 dB for output levels below -10 dBm
Impedance	50 Watts
Frequency Modulation Range	0 to 99.9 kHz
Frequency Response	±1 dB
Phase Modulation Range	0 to 9.99 radians
Amplitude Modulation Range	0 to 99.5%
Resolution	0.5%
