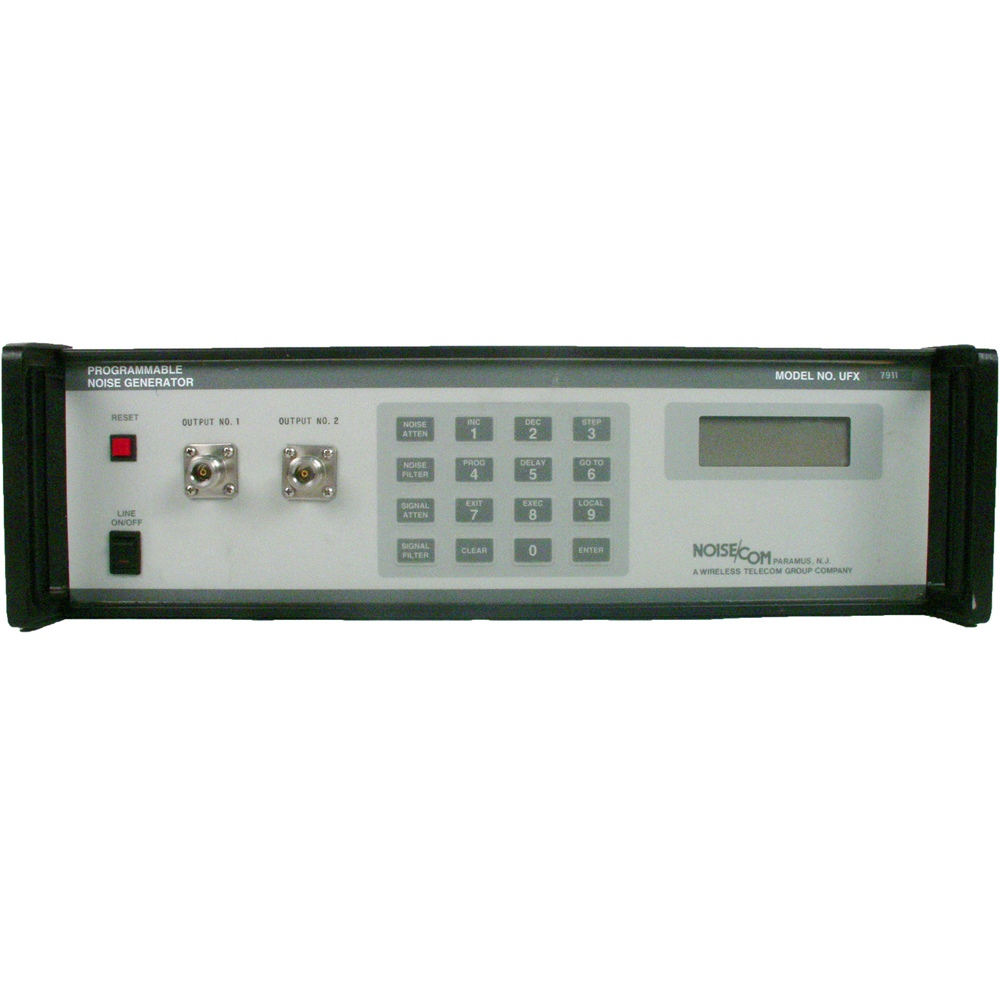

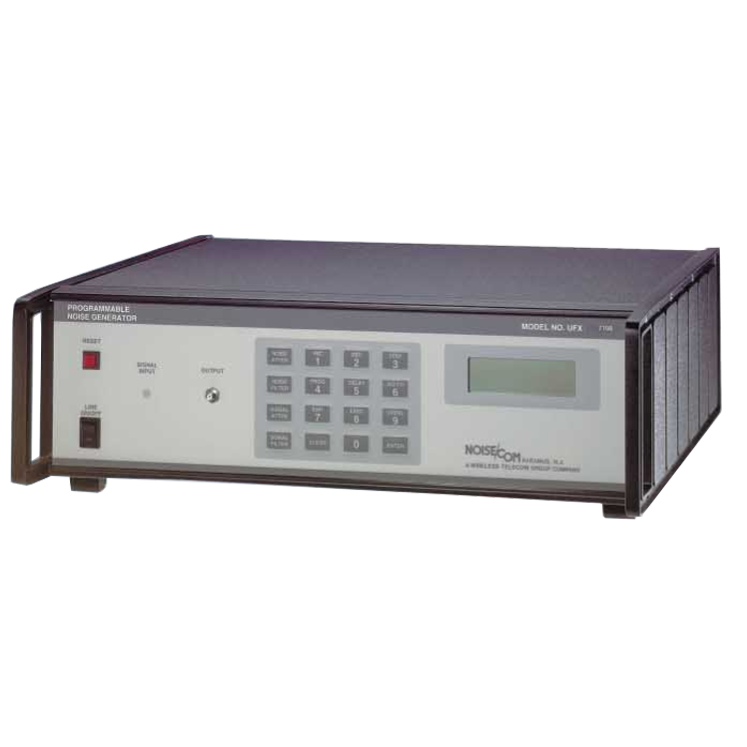

NoiseCom UFX7107 Programmable Noise Generator, 100Hz - 100MHz

Discontinued

The NoiseCom UFX7107 Programmable Noise Generator is not available. See other models.

The NoiseCom UFX7107 Programmable Noise Generator is extremely easy to use, combining dedicated keys for control of operations and programming with a large 4 x 20 character LCD display for instant status information. The UFX 7107 is part of the UFX 7000 series of programmable noise generators which are direct replacements for NoiseCom's NC7000 Series.

The UFX 7107 programmable noise generator contains a Noise Com amplified noise source that is tuned to provide the best flatness at the instrument output. The amplifier is optimized to deliver an output with a Gaussian amplitude distribution. Noise output power level can be adjusted from 0 to 127 dB in 1 dB (optionally 0.1 dB) steps.

Product Info

Frequency Range: 100 Hz - 100 MHz
Output Characteristics
- Power(dBm): +13
- dBm/Hz: -67
- Flatness (dB): ±0.75
Output: White Gaussian noise
Attenuator:
- 0 to 127 dB in 1 dB steps
- 0 to 79 dB above 2 GHz
- (0.1 dB steps optional)
Control: Local and IEEE-488
Impedance: 50 ohms (others optional)
Typical VSWR: 1.5:1
Standard output connector: SMA female

Electromagnetic susceptibility
Filter testing
CATV gain (tilt) alignment
Image and spurious rejection tests
GPS receivers
Disk drive testing
Spectrum analyzer calibration
Jamming systems
Signal to noise measurement

SKU: NOIS-UFX7107
