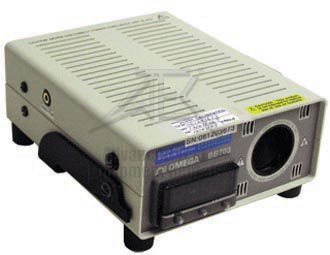

Omega BB703-C2 Miniature Blackbody Calibration Source
Enlarge Image
Omega BB703
Request Quote Print Page
Manual BB703 Datasheet
Miniature Blackbody Calibration Source

Omega BB703 Features
  • Calibrates From Ambient +10 to 400°C (Ambient +20 to 752°F)
  • Portable Miniature Design
  • Built-in Digital 1⁄32 DIN Temperature Controller
  • Calibrates Infrared Instruments Quickly and Accurately
  • Optional RS-232 Communications with CN9-SW Communications Software and Cable
Omega BB703 Specs
Target Plate Temperature Range:
Ambient +10 to 400°C
(Ambient +20 to 752°F)*

Ambient Environmental Conditions:
Temperature: 0 to 40°C (32 to 104°F)*
Humidity: 0 to 90% RH, non-condensing

Power:
BB703: 115 Vac, 50/60 Hz 175 W
BB703-230VAC: 230 Vac,
50/60 Hz, 175 W

Internal Control Sensor:
Platinum RTD, Class A, 100Ω, Alpha = 0.00385

Accuracy: ±1.4°C (±2.5°F)
Resolution: 0.1°
Stability: 0.3°C (±0.5°F)
