Phenix HC-3 Portable High Current Test Set

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Phenix HC-3 Portable High Current Test Set
Enlarge Image
Phenix Technologies HC-3
Request Quote Print Page
HC-3 Datasheet

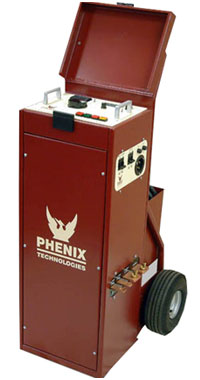

The Phenix HC-3 Portable High Current Test Set provides a short duration output through a typical molded-case circuit breaker when an instantaneous trip element must be tested. Sufficient current is available for testing time delay characteristics of motor overload relays and molded-case circuit breakers.
Phenix Technologies HC-3 Features
  • Easy to operate
  • Ruggedly constructed for years of field and shop use
  • Designed using proven technology, these units combine a variable high current output with user-friendly controls and precision instrumentation
Phenix Technologies HC-3 Specs
Input Voltage/Current 230 VAC, 25 Amp
Frequency 50 Hz or 60 Hz
Output 0-15 VAC, 0-200 A
0-7.5 VAC, 0-400 A
0-3.75 VAC, 0-800 A
Overload 3000 A
Short duration overloads are possible on each tap. The test set is capable of 3000 A depending on the impedance of the test circuit.
Duty Cycle Continuous at 100%
5 minutes ON/15 minutes OFF at 200%
1 min ON/10 min OFF @ 300%
10 sec ON/5 min OFF @400%
3 sec ON/5 min OFF @ 500%
Current meter: 4 1/2 digit LCD
Ranges: 0-1.9999/19.999/199.99/5000 A
Accuracy: +/-1% Full Scale 0-2 A; 2000-5000 A
+/-0.5% Full Scale 2-2000 A
Timer: 6 digit LCD, in cycles or seconds
Ranges: 0-999999 cycles or 0-9999.99 seconds
Accuracy: +/-0.1% of reading +/- least significant digit
Phenix Technologies HC-3 Applications
  • Ideal for testing thermal, magnetic, and solid-state motor overload relays, as well as molded-case circuit breakers and ground fault trip devices
  • They can also be used in many other applications requiring a high current source
