Praxsym PAMS-C Shield Level / Pathloss Equipment

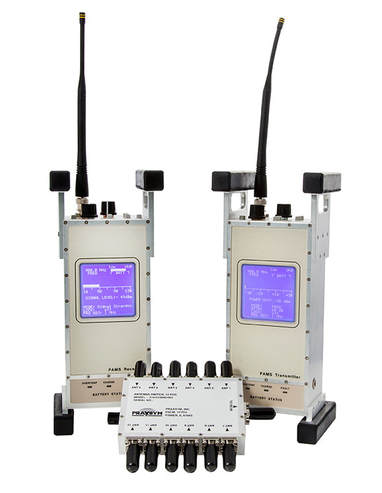

The Praxsym PAMS-C Shield Level / Pathloss Equipment is a user-friendly transmitter and receiver system that measures the shielding effectiveness of RF shielded enclosures. Lightweight and compact, each Praxsym PAMS-C unit measures approximately 12" x 5" x 5" and weighs 5.5 lbs., making the PAMS-C ideally suited for field measurement tasks. Rugged construction ensures instrument survivability in a field test environment. The Praxysm PAMS-C incorporates a self-calibrating architecture that allows for ease of use and requires only minimal operator instruction for error-free operation. A backlit LCD output displays shielding effectiveness, battery status, and other operating parameters. The PAMS-C allows the user to set a minimum shield level threshold. While sniffing around the enclosure, a tone will sound in the headphones should the shield level drop below the threshold. The pitch of the tone varies based on the measured shield level’s distance from the set threshold value.
| PAMS-C Receiver | |
|---|---|
| Frequency Band | 864-936 MHz |
| Tuning Step Size | 1 MHz and 100 kHz |
| Operating Modes | Signal Strength, Shield Level, Spectrum Monitor |
| IF Bandwidth | 20 kHz nominal |
| 1st IF | 90 MHz |
| 2nd IF | 455 kHz |
| RF Input Connector | BNC female |
| RF Input Impedance | 50 ohms nominal |
| Input Preselection | 80 MHz 1 dB bandwidth |
| Signal Level Relative Accuracy | +/- 1.0 dB (-120 dBm to 0 dBm) |
| Absolute Level Accuracy | +/- 2.0 dB (-120 dBm to 0 dBm) |
| Maximum Safe Input Level | +30 dBm (1 watt) minimum |
| Battery Operation | 5 hours minimum at full charge |
| Batteries | Nickel Cadmium |
| AC/Charger Operation | 95-265VAC, 48-65 Hz |
| Charge Time | 120 minutes typical |
| Weight | 5.5 lbs nominal |
| PAMS-C Transmitter | |
| Frequency Band | 864-936 MHz |
| Tuning Step Size | 1 MHz and 100 kHz |
| Maximum Output Power | +30 dBm minimum |
| Output Power Control | 1, 2 or 5 dB steps from –30 to +30 dBm |
| Output Level Accuracy | +/1.0 dB maximum |
| Harmonics | -60 dBc maximum |
| Output Impedance | 50 ohms nominal |
| Load VSWR | Safe operation into infinite VSWR (isolator protected) |
| RF Output Connector | BNC female |
| Battery Operation | 2 hours minimum at full charge |
| Batteries | Nickel Cadmium |
| AC/Charger Operation | 95-265VAC, 48-65 Hz |
| Charge Time | 120 minutes typical |
- Measures Path Loss, Signal Strength Shielding Effectiveness
- 864-936 MHz
- Path Loss Accuracy: +/- 1 dB Typ.
- Receiver Range: 0 To -120 dBm
- Transmitter Power: -30 To +30 dBm
- Synthesized: 1 MHz And 10 KHz Step Size
- AC Power Or Battery Operation
SKU: PRAX-PAMS-C-310-010042-003
