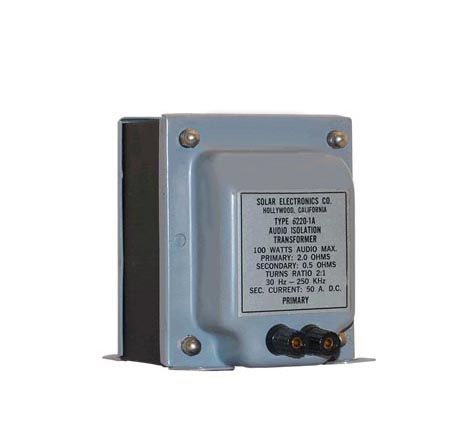

Solar 6220-1A Audio Isolation Transformer

Solar 6220-1A Audio Isolation Transformer
Enlarge Image
Solar 6220-1A Audio Isolation Transformer Solar 6220-1A Audio Isolation Transformer
Solar Electronics 6220-1A
Request Quote Print Page
Datasheet

The Solar 6220-1A Audio Isolation Transformer was especially designed for screen room use in making conducted audio frequency susceptibility tests as required by MIL-STD-461/462 and other EMI specifications. The 6220-1A may also be used as a pickup device to measure low frequency EMI currents at lower levels than conventional current probes. In addition, its secondary may be used as an isolating inductor in the power line during transient susceptibility tests.


The transformer is capable of handing up to 200 watts of audio power into its primary over the frequency range 30 Hz to 250 KHz. The turns ratio provides a two-to-one step down to the special secondary winding. The secondary will handle up to 50 A of AC or DC without saturating the transformer.

Solar Electronics 6220-1A Specs
Primary Less than 5 ohms
Secondary One-fourth the primary impedance
Frequency Response 30 Hz - 250 KHz
Audio Power 200 W
Dielectric Test 600 VDC primary to secondaries and each winding to end bells
Secondary Saturation 50 Amps, AC or DC maximum
Turns Ratio Two-to-one step down
Secondary Inductance Approximately 1.0 mH
