Solar 6220-4 Audio Isolation Transformer for DO-160E, Section 18 & 22

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

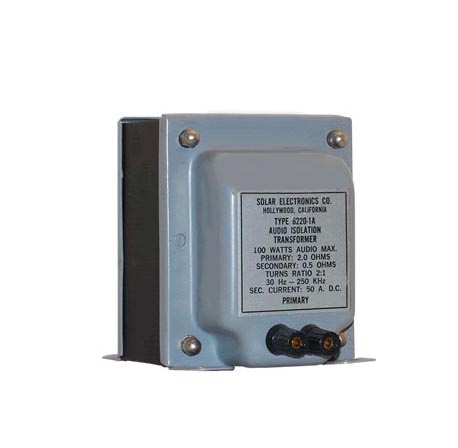

Solar 6220-4 Audio Isolation Transformer for DO-160E, Section 18 & 22 Larger
Documents
  • Datasheet
  • Print
  • Email

The Solar 6220-4 audio isolation transformer handles up to 200 watts of audio power into its primary over the frequency range 30 Hz to 250 KHz. The turns ratio provides a two-to-one step down to the special secondary winding. The secondary will handle up to fifty amperes of AC or DC without saturating the transformer.

The Solar 6220-4 audio isolation transformer was especially designed for screen room use in making conducted audio frequency susceptibility tests as required by MIL-STD-461/462 and other EMI specifications.

The Solar 6220-4 audio isolation transformer may also be used as a pickup device to measure low frequency EMI currents at lower levels than conventional current probes. In addition, its secondary may be used as an isolating inductor in the power line during transient susceptibility tests.

Features of the Solar 6220-4 include a convenient bench model unite with three-way binding posts on primary and output voltmer heads and the capability to handle up to 50 amperes of a.c. or d.c. In addition, it may be used as a pickup device or an isolating inductor in other tests. The Solar 6220-4 transformer is suitable for fastening to the bench top in permanent test setups.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
Specifications
Primary Less than 5 ohms
Secondary One fourth the primary impedance
Frequency Response 30 Hz - 250 kHz
Audio Power 200 Watts
Dielectric Test 600 Volts DC primary to secondaries and each winding to end bells
Secondary Saturation 50 Amperes 4 kV transient voltage HV transformer
Turns Ratio Two-to-one step down
Secondary Inductance Approximately 1.0 mH
