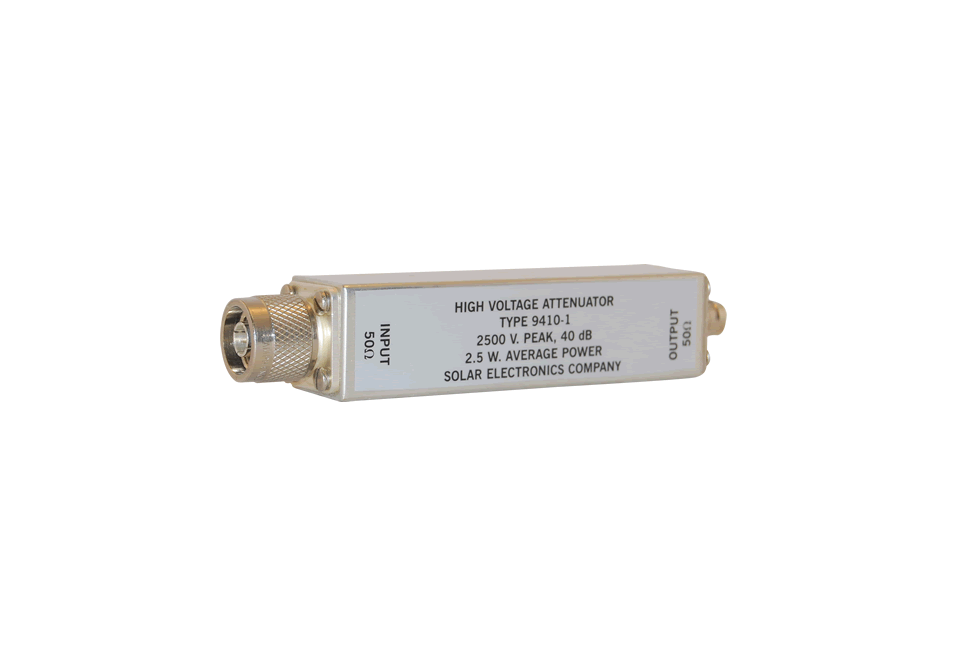

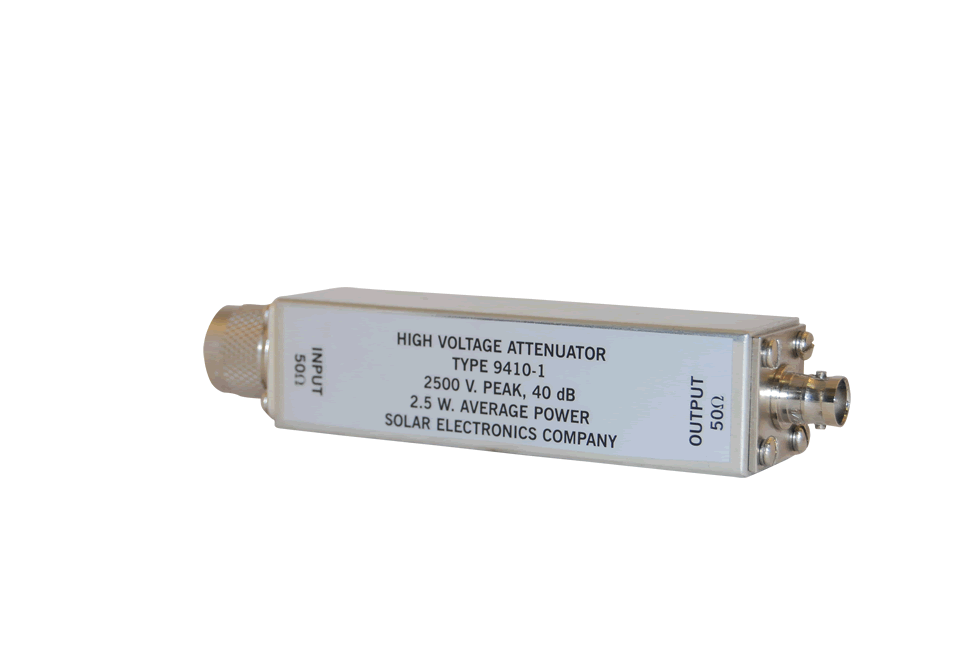

Solar 9410-1 High Voltage Attenuator, 40 dB

Solar 9410-1 High Voltage Attenuator, 40 dB
Enlarge Image
Solar 9410-1 High Voltage Attenuator, 40 dB Solar 9410-1 High Voltage Attenuator, 40 dB Solar 9410-1 High Voltage Attenuator, 40 dB
Solar Electronics 9410-1
Request Quote Print Page
Datasheet

The Type 9410-1 is a special purpose attentuator designed to attenuate very short duration, high voltage and relatively low duty cycle pulses.


Specifications

Attenuation: 40 dB
Voltage Rating: 3200 V max.
Average Watts: 2.0 max.
Frequency Range: dc to 1 GHz
Output Impedance: 50 ohms
Input Impedance: 50 ohms
Input Connectors: Type N, Male
Output Connector: Type BNC, Female
