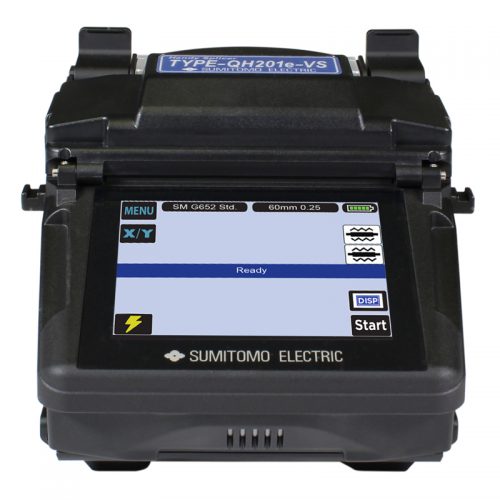

Image of Sumitomo Quantum Type QH201e-VS Handheld Fusion Splicer

Sumitomo

Sumitomo Quantum Type QH201e-VS Handheld Fusion Splicer

The Sumitomo Quantum Type QH201e-VS Handheld Fusion Splicer is a portable FTTx fusion splicing unit with a quick splice time of 12 seconds and a heater cycle time of 30 seconds per heater. Sumitomo Quantum Type QH201e-VS devices specialize in precision cable fiber splicing, leaving a nearly imperceptible footprint on spliced cables. Fixed V-Groove alignment is integrated into the RoHS compliant system, which features a sleeve length of 10 mm and is capable of testing cables with a coating diameter of 250µm, 500µm and 900µm. The high-resolution display is optimized for user accessibility, its sleek touchscreen interface ideal for remote maintenance and software updates. Sumitomo Quantum Type QH201e-VS instruments come with a Li-ion battery technology and an easy-to-use fiber holder system.

Product Info
RoHS Compliant
Alignment Method Fixed V-Groove
Coating Diameter Single: 250µm, 500µm, and 900µm
Cladding Diameter 125µm
Cleave Length 10mm
Typical Heaters Cycle Time Each Heater 30 seconds 60mm (FPS-61-2.6)
Typical Splice Time 12 seconds
Heater Programs Max/Preset 100 / 30
Splice Programs Max/Preset 300 / 50
Internal Splice Data Storage 10000
Image Storage 64
Electrode Life 3000 arcs
  • RoHS compliant
  • Internal battery charges while splicing
  • Remote maintenance and software upgrades achieved through internet interface
  • Help and maintenance videos built in to device
  • Micro-SD ports for virtually limitless data storage
  • Automatic functionality: splice, arc calibration and heater automatic starts
  • Hard or soft transit case
  • Easy to use Fiber Holder Based System
  • Lynx2 CustomFit® Splice-On Connector compatible


SKU: SUMI-QH201E-VS-KIT-8RH
