Sumix WIZ-QS+ Interferometer

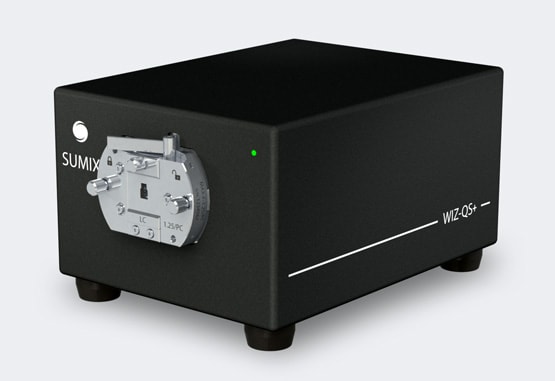

The Sumix WIZ-QS+ Interferometer is a whitelight single-fiber interferometer for inspection of single fiber connectors, ferrules, bare fiber (both PC and APC) in production environment. Sumix WIZ-QS+ interferometers connect to a laptop or desktop computer via USB 3.0 cable and 12V DC power adapter and are supplied with Sumix MaxInspect software for interferometric inspection of fiber optic connectors. The Sumix WIZ-QS+ saves you time with easy ferrule/connector insertion and fixture handling. Interactive 2D and 3D surface profiles allow you to otate, zoom, scale images to explore surface details as small as 2.7 μm. Measure single fiber connectors and ferrules as quickly as 1.8 seconds with USB 3.0 SuperSpeed connection. Perform inspections for a wide range of applications, such as single fiber connectors, ferrules, bare fibers, Arinc, and MS termini, both PC and APC. The Sumix WIZ-QS+ also allows you to test per IEC, Telcordia or your own Pass/Fail criteria.
| Field of view | D = 0.75 mm |
| Lateral resolution | 2.7 µm |
| Best suitable for connectors/ferrules | ST, FC, SC, MU, LC, E2000™, Arinc, MS termini - PC and APC |
| Measurement mode | Phase shift and white light |
| Scanning and calculation speed | 1.8 sec |
| Microscopy Mode | No |
| Maximum image size | 1600 × 1200 px |
| Power supply | External, USB 3.0 cable, 12 V DC power adapter |
| Weight | 3.9 kg (8.6 lbs) |
| Dimensions (H × W × L) | 150 × 120 × 90 mm (5.9 × 4.72 × 3.5 in) |
| Focus | Autofocus |
| Focus range | ±1 mm |
| Repeatability C.F. | ROC: 0.2 % Fiber Height: 0.4 nm Angles: 0.0002 deg Apex Offset: 0.02 µm |
| Repeatability C.R. | ROC: 0.2 % Fiber Height: 0.5 nm Angles: 0.007 deg Apex Offset: 1.1 µm |
| Recommended | Windows 10, Windows 7 Service Pack 1 Intel Core i7 4GB RAM or higher Built-in Intel USB 3.0 controller Microsoft Excel 2007 or higher |
- Single fiber connectors
- Autofocus
- PASS/FAIL verdict
- Fast measurement
- Industry standards
- Connects to tablet or laptop
SKU: SUMX-WIZ-QS+-PKG01
