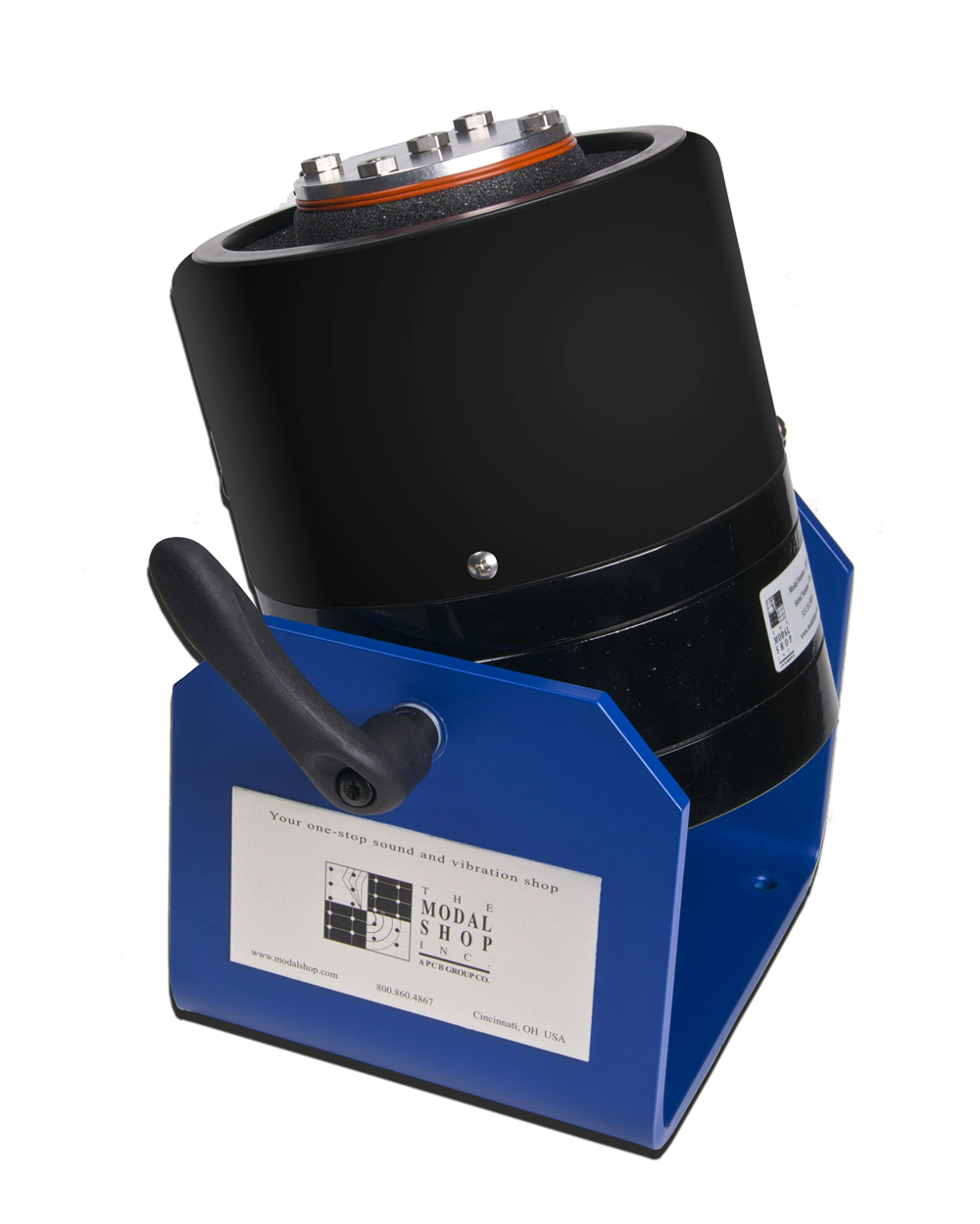

| Performance |
| Output Force, sine pk, ambient air cooling |
40 lbf (178 N) |
| Output Force, sine pk, forced air cooling |
75 lbf (334 N) |
| Output Force, random RMS, ambient air cooling |
17 lbf (76 N) |
| Output Force, random RMS, forced air cooling |
28 lbf (125 N) |
| Output Force, shock pk (50 ms) |
75 lbf (334 N) |
| Stroke Length, continuous pk-pk |
1.0 in (25.4 mm) |
| Stroke Length, between stops |
1.03 in (26.2 mm) |
| Frequency Range, nominal |
DC - 6500 Hz |
| Fundamental Resonance |
> 4000 Hz |
| Maximum Velocity |
70 in/s pk (1.8 m/s pk) |
| Maximum Acceleration, bare table |
75 g pk |
| Maximum Acceleration, 1 lb load |
38 g pk |
| Maximum Acceleration, 5 lb load |
12 g pk |
| Maximum Acceleration, resonance |
120 g pk |
| Maximum Acceleration, peak shock |
150 g pk |
| Maximum Payload, typical |
7 lb (3.2 kg) |
| Physical |
| Platform Mounting Thread |
5x 10-32 |
| Armature Weight |
1 lb (0.45 kg) |
| Suspension Stiffness |
60 lbf/in (10.5 N/mm) |
| Rated Drive Current, ambient air cooling |
11 A RMS |
| Rated Drive Current, forced air cooling |
22 A RMS |
| Stray Magnetic Field, 1.5 in (33 mm) above table |
< 15 Gauss |
| Stray Magnetic Field, 1.0 in (25 mm) from body |
< 20 Gauss |
| Cooling Air |
100 cfm/15 in H2O |
| Dimensions (H x W x D), nominal |
10.5 x 12.55 x 6.5 in (267 x 319 x 165 mm) |
| Weight, nominal |
35 lb (16 kg) |
| Temperature Operating Range |
40 °F–100 °F (4 °C–38 °C), < 85 % RH |
