Rent Thermo Keytek E420 EFT/Burst Simulator Unidirectional Impulse Wave
Enlarge Image

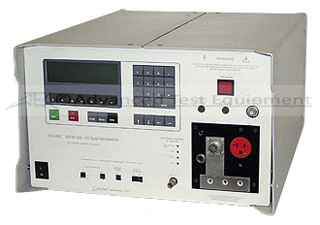

Thermo Fisher Scientific Thermo Keytek E420
Request Quote Print Page
Thermo Keytek E420 Datasheet
EFT Burst Simulator
Thermo Fisher Scientific Thermo Keytek E420 Specs
Standards Met or Exceeded IEC 1000-4-4 (IEC 801-4); ANSI/IEEE C62.41
Wave Unidirectional Impulse
Character 5 ns / 50ns
Individual or Burst Burst
Amplitude ± 0.25 to ± 8 kV
Output Z0 50 ohms
Wave Repetition Frequency Selectable to 10 kHz to 4.4 kV; 2.5 kHz to 8 kV
Random & Chirp Modes
Burst Duration 1 ms to 20 ms
Burst Repetition Period: 0.3 s to 5 s Synch with Power Line
Adjustable Line Phasing
Internal Coupler/Decoupler
Fiber-optic RS-232 Control
