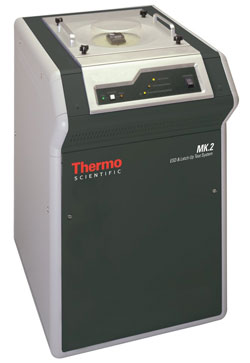

Thermo Scientific MK.2 ESD and Static Latch-up Test System

Rent Thermo Scientific MK.2 ESD and Static Latch-up Test System
Enlarge Image
Thermo Fisher Scientific Thermo Scientific MK.2
Request Quote Print Page
Datasheet
Identify and help correct ESD and latch-up susceptibility issues on sensitive integrated circuit components prior to full-scale production with the Thermo Scientific™ MK.2-SE ESD and Latch-Up Test System. The MK.2-SE test system provides advanced capabilities to test high pin count IC devices to Human Body Model (HBM) and Machine Model (MM) ESD standards. The system’s pulse delivery design addresses wave form hazards such as trailing pulse and pre-discharge voltage rise, and performs Latch-Up testing per the JEDEC EIA/JESD 78 Method.

Thermo Fisher Scientific Thermo Scientific MK.2 Features
  • Waveform network: 8-site HBM pulse source
  • Human Body Model (HBM) and Machine Model (MM) testing to industry standards
  • Latch-Up testing per current JEDEC EIA/JESD 78 method
  • Preconditioning option allows DUT to be vectored with complex test and vector patterns for excellent control
  • Highly repeatable, reproducible test data
  • Enhanced data set features
  • High voltage power supply chassis
  • Power supply sequencing
  • Event trigger output
  • Comprehensive engineering vector debug
  • Intuitive set-up and operation using the Thermo Scientific™ Scimitar™ software platform
