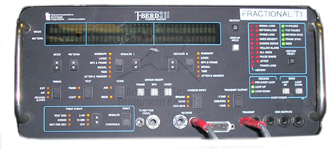

TTC T-BERD 211 T-Carrier Analyzer

TTC T-BERD 211 T-Carrier Analyzer
Enlarge Image
Request Quote Print Page
Datasheet



Features:

  • Automatic configuration and results summary
  • Automated sequences of test patterns for one-step circuit qualification and stress tests
  • Pulse shape analysis, signal level and frequency, simplex current, and wander measurements
  • Out-of-band ESF loop codes standard
  • Wideband and high band jitter measurement



Specifications:

  • Input and Output Connectors: Bantam, WECO 310, 15-pin D, BNC
  • Input Impedance:
    * Bridge: ≥ 1000 ohms with ALBO
    * Term: 100 ohms with ALBO
    * DSX-MON: 100 ohms with AGC
  • Receive Level
    * Bridge or term: +6 dBdsx to -35 dBdsx (T1), +3 dBdsx to -6 dBdsx (T1C)
    * DSX-MON: +6 dBdsx to -24 dBdsx (T1), +3 dBdsx to -24 dBdsx (T1C)
  • Level Measurement: +6 dBdsx to -40 dBdsx; +6 to -6, 0.1 dB resolution; -6 to -40, 0.5 dB resolution
  • Frequency Measurement: 1 Hz resolutions; 5 ppm accuracy
  • Transmit Timing Sources: Internal Clock, External Clock, Reference Clock, Recovered Clock
  • Line Codes: AMI, B8ZS
  • Loopback Codes: CSU, CSU Line (ESF), CSU Payload (ESF), NIU (FAC1, FAC2, FAC3), NIU Network (ESF), Programmable (3 to 8 bits), Intelligent Repeaters
  • Pulse Masks: CB 119 (ANSI T1.102), ANSI T1.403-1989
  • Wander Measurement: +99999 UI, 1 UI resolution
  • Power Requirements: 115 VAC ±10%, 50 to 60 Hz
  • Optional Accessories: 40849-01: T-BERD T1 Channel Monitor
